READ MOREDeep-drawn containers with cutouts are engineered metal components designed for applications that require strength, dimensional consistency, cleanliness, and reliable integration with other assemblies. Manufactured through a controlled deep-drawing process, these containers are formed from sheet metal into seamless or substantially seamless three-dimensional shapes. Custom cutouts can then be incorporated to support ventilation, drainage, wiring, fastening, inspection, fluid movement, or assembly requirements.
Unlike conventional fabricated containers assembled from several welded pieces, a deep-drawn container can be produced from a single sheet blank. This approach reduces the number of joints, minimizes potential weak points, improves appearance, and supports consistent production across large quantities. When the design is properly engineered, the finished component offers a strong combination of structural performance, lightweight construction, corrosion resistance, and cost-efficient repeatability.
This article examines the design, manufacturing process, material options, surface treatments, quality considerations, and application advantages of deep-drawn containers with cutouts. It also explains how Yuyao Hongli Optoelectronics Co., Ltd. supports OEM and ODM projects through deep drawing, precision sheet metal stamping, bending, prototyping, and customized production services.
A deep-drawn container is produced by pressing a flat metal blank into a forming die with a punch. The metal flows into the die cavity and develops a three-dimensional shape without requiring the blank to be cut into multiple panels and welded together. Depending on the required depth, wall thickness, geometry, and material, the operation may be completed in one draw or through several progressive drawing stages.
The term “container” can describe many different geometries. It may refer to a shallow tray, a cup-like housing, a rectangular enclosure, a cylindrical vessel, a formed cover, or a specialized internal component. The exact design depends on how the part will be used. Some containers are intended to hold or guide materials, while others function as protective housings, structural supports, heat shields, appliance components, or equipment interfaces.
Cutouts are openings intentionally formed or machined into the container. They may include circular holes, rectangular apertures, elongated slots, ventilation patterns, drainage openings, cable passages, mounting points, inspection windows, or complex profiles. Cutouts can be created during stamping, during a secondary punching operation, or through another precision process after the deep-drawing stage.
The combination of deep drawing and customized cutouts allows manufacturers to create a component that is both structurally efficient and ready for integration. Rather than purchasing a standard container and performing extensive modifications, customers can specify the dimensions, openings, edge conditions, material, thickness, and surface finish required for their application.
Deep drawing is particularly valuable when a project requires a formed metal component with repeatable dimensions and a clean appearance. The process uses dedicated tooling to control the movement of the sheet, the shape of the finished part, and the relationship between different surfaces. Once the tooling has been developed and validated, the same geometry can be reproduced consistently over a production run.
A major advantage is the reduction of welded seams. Welded assemblies can be effective, but every joint introduces additional requirements, including joint design, welding parameters, post-weld cleaning, distortion control, and inspection. A one-piece deep-drawn component can reduce these concerns and provide a more uniform surface. It can also reduce the number of manufacturing steps and simplify downstream cleaning or finishing.
The forming process can improve the efficiency of the material layout. With appropriate design and simulation, the blank size, draw ratio, corner radii, and forming sequence can be optimized to reduce unnecessary material usage. This is especially important for stainless steel and other higher-value materials.
Deep drawing also supports lightweight design. Instead of relying on thick plates or numerous reinforcing components, the formed geometry can use curved walls, integrated flanges, beads, steps, or return edges to achieve the required stiffness. A properly designed container may therefore provide high functional performance without excessive mass.
For applications exposed to vibration, handling, thermal cycling, moisture, or repeated cleaning, the absence of unnecessary welded joints may provide an additional reliability benefit. The final performance still depends on the selected material, geometry, thickness, forming quality, cutout design, and service conditions, but deep drawing offers a strong foundation for robust component design.
The most recognizable advantage of a deep-drawn container is its one-piece construction. The main body is formed from a sheet blank instead of being assembled from separate sidewalls and a base. This can improve structural continuity and reduce the risk of leaks, crevices, or visual inconsistencies associated with multiple joints.
For food-processing, medical, laboratory, and hygienic equipment, reduced-joint construction can be particularly important. Smooth internal surfaces are easier to clean, and fewer seams may reduce locations where residue, moisture, or contaminants could accumulate. The suitability of a specific design for hygienic use should always be verified against the applicable industry requirements and cleaning conditions.
Standard containers often require additional drilling, cutting, or machining before they can be assembled into a finished product. A custom deep-drawn container can incorporate openings designed around the complete assembly. This can reduce secondary processing and improve the relationship between the container and adjacent components.
Cutouts can be positioned to support airflow, drainage, wiring, fastening, fluid transfer, sensor installation, or component access. Their shape and edge treatment can be adapted to the application. For example, a cable slot may require a rounded profile to reduce abrasion, while a drainage hole may be positioned at the lowest point of the formed cavity. A mounting opening may need a tight positional tolerance to align with a mating bracket.
When cutouts are included in the initial engineering plan, the manufacturer can consider their distance from corners, sidewalls, flanges, and formed features. This helps prevent deformation, cracking, excessive thinning, or interference with tooling. It also makes it possible to evaluate whether the opening should be created before drawing, between drawing stages, or after forming.
Deep-drawn metal containers are suitable for environments where the component must withstand handling, vibration, impact, or moderate mechanical loads. Formed sidewalls and radiused corners can provide better load distribution than a simple flat sheet. The final strength depends on the metal grade, thickness, geometry, forming direction, corner radius, and use conditions.
For equipment housings and protective components, a formed container can help shield internal parts from physical contact. For automotive or mechanical applications, the shape can be designed to fit around other components while maintaining sufficient rigidity. Additional ribs, flanges, beads, or return edges can be incorporated when the design requires greater stiffness.
Materials such as stainless steel can provide strong resistance to corrosion and staining in many industrial, food-processing, medical, and household environments. Surface treatments can further influence appearance, cleanability, friction, and resistance to environmental exposure.
Available finish options may include brushed, polished, sandblasted, or electropolished surfaces. A brushed finish provides a directional appearance and can help create a consistent visual texture. A polished finish may be selected where a smoother or more reflective appearance is desired. Sandblasting can provide a uniform matte texture, while electropolishing can improve surface smoothness and cleanliness for suitable stainless-steel applications.
Surface selection should be based on the actual operating environment. Chemical exposure, temperature, humidity, cleaning agents, abrasion, and appearance requirements all influence the appropriate material and finish. A manufacturer should review these factors before finalizing the production specification.
Deep-drawn containers can deliver useful structural performance with relatively low weight. This is beneficial in automotive components, portable equipment, household appliances, electronics, and assemblies where every gram affects handling, transportation, or energy efficiency.
The process also allows the container to be shaped around available installation space. A custom depth, flange, radius, or opening pattern can help maximize the use of a restricted envelope. Instead of adapting the complete product around a generic enclosure, engineers can develop the container around the actual internal components and assembly sequence.
Once tooling and process parameters have been approved, deep drawing is well suited to repeat production. Consistent blank preparation, press settings, lubrication, die alignment, intermediate inspection, and final inspection help maintain uniformity from one batch to another.
This repeatability is valuable for OEM customers that require the same container to be integrated into a larger product over an extended period. It also supports ODM projects in which the manufacturer contributes to design refinement, material selection, tooling development, and production planning.

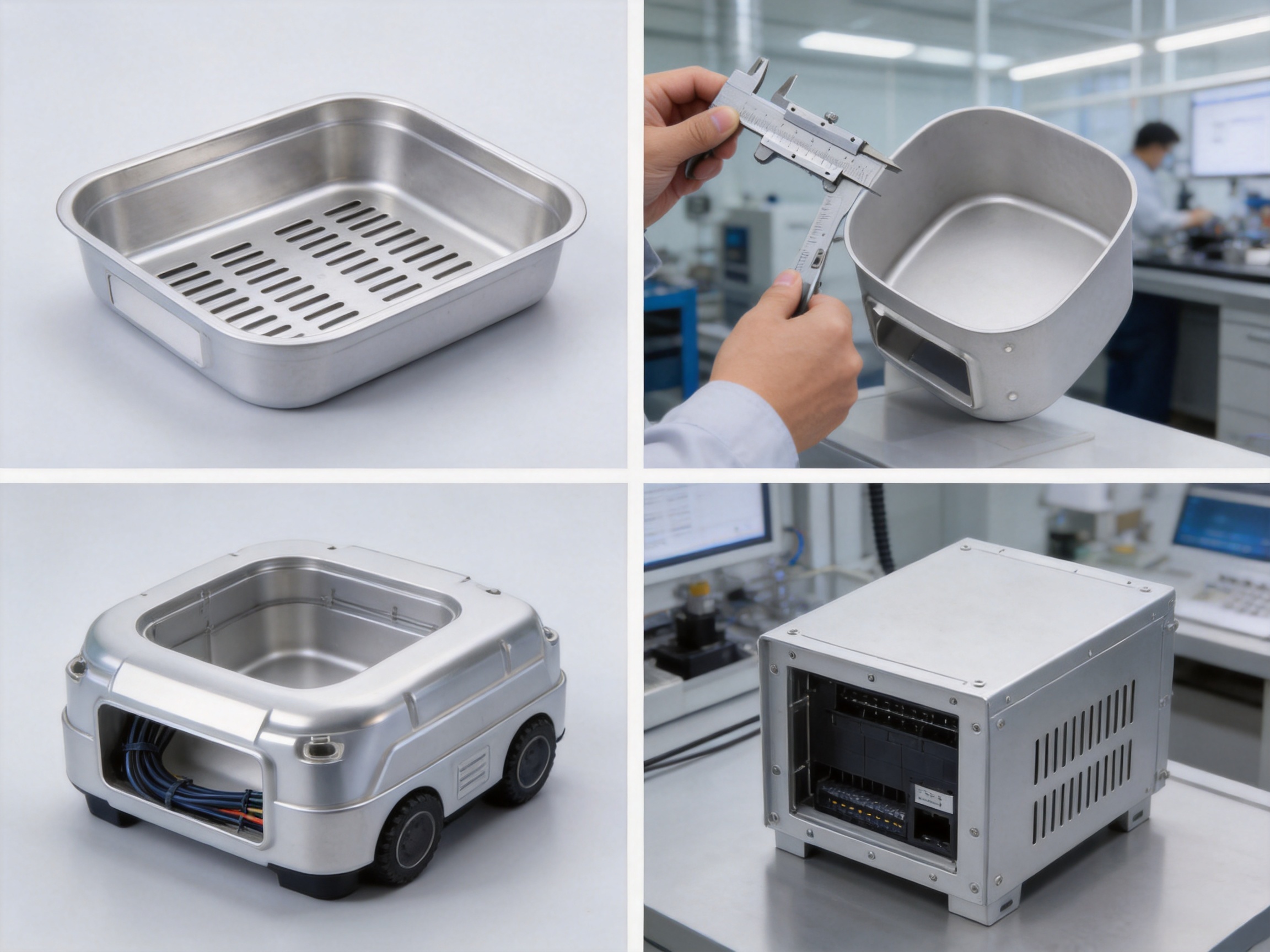

Deep-drawn container with cutouts
The material and thickness of a deep-drawn container should be selected according to the performance requirements of the final application. Common considerations include formability, corrosion resistance, strength, appearance, thermal exposure, magnetic properties, weight, availability, and cost.
Stainless steel is often selected for containers used in food-related equipment, medical devices, kitchen appliances, laboratory equipment, and applications that require corrosion resistance. It can also support attractive brushed, polished, or electropolished finishes. However, different stainless-steel grades have different forming characteristics, corrosion behavior, and surface responses, so the grade should be specified according to the actual requirements.
Other sheet metals may be suitable for applications where different combinations of weight, conductivity, cost, or forming performance are needed. The manufacturer and customer can review the intended function before selecting the final material. When the container will contact food, chemicals, cleaning solutions, or sensitive products, the material specification should be assessed carefully.
Thicknesses from approximately 0.5 to 3.0 millimeters can be considered for this product category, subject to the geometry, material, draw depth, cutout arrangement, and production method. Thinner sheet can reduce weight and material cost, but it may require more careful control of wrinkling, tearing, deformation, and handling damage. Thicker sheet can provide greater stiffness and impact resistance, but it may require higher forming force and more substantial tooling.
Thickness should not be selected in isolation. A relatively thin wall with suitable formed features may perform better than a thicker wall with poor geometry. Likewise, a deep container with small radii and closely positioned cutouts may present greater forming challenges than a shallower container with generous transitions. Engineering review is therefore recommended before the final design is released for tooling.
Manufacturing begins with a review of the customer’s drawings, three-dimensional data, samples, or functional description. The review considers the overall dimensions, depth, wall thickness, flange shape, corner radii, cutout geometry, tolerances, material, surface finish, quantity, and intended use.
At this stage, the manufacturer can identify potential forming concerns. These may include excessive draw depth, sharp corners, insufficient radii, uneven material flow, cutouts positioned too close to a bend, or tolerances that are unnecessarily difficult to achieve through the selected process. Early identification of these issues can reduce tooling changes and improve development efficiency.
A practical design review should also consider how the finished container will be packed, transported, cleaned, assembled, and inspected. If the part will be nested during shipment, the geometry should be checked for possible surface damage or stacking interference. If the part will be assembled automatically, the orientation and reference features should support reliable handling.
The flat sheet blank is the starting point for the deep-drawing operation. Blank size and shape are determined according to the final container geometry, draw depth, material behavior, and forming sequence. A well-developed blank helps control material flow and minimize waste.
Material preparation may include sheet inspection, surface protection, leveling, slitting, and blanking. The sheet should be free from defects that could become visible or cause failure during forming. Surface condition is especially important when the finished container will receive a decorative or hygienic finish.
Blanking can be performed with stamping dies or other suitable cutting equipment. The cutting method should provide an edge condition appropriate for the forming process. Excessive burrs, distortion, or inconsistent blank dimensions can affect draw quality and lead to variation in the finished container.
Deep-drawing tooling controls the shape and movement of the metal. The primary components typically include a die, punch, and blank holder, although complex products may require multiple tools, forming stages, pilots, guides, trimming features, or integrated piercing operations.
Die corner radii are critical. A radius that is too small can increase localized strain and create a risk of cracking or excessive thinning. A radius that is too large may affect dimensional control or produce an unwanted profile. The punch and die must be designed together with the selected material and thickness.
The blank holder controls the sheet as it enters the die. Too little holding force can allow wrinkles to form, while too much force can restrict material flow and increase the risk of tearing. The correct setting depends on material properties, draw geometry, lubrication, and the specific tool design.
For deeper or more complex containers, multiple drawing stages may be used. The component is gradually formed to the target geometry rather than being forced into its final shape in a single operation. This staged approach can improve material distribution and reduce forming stress.

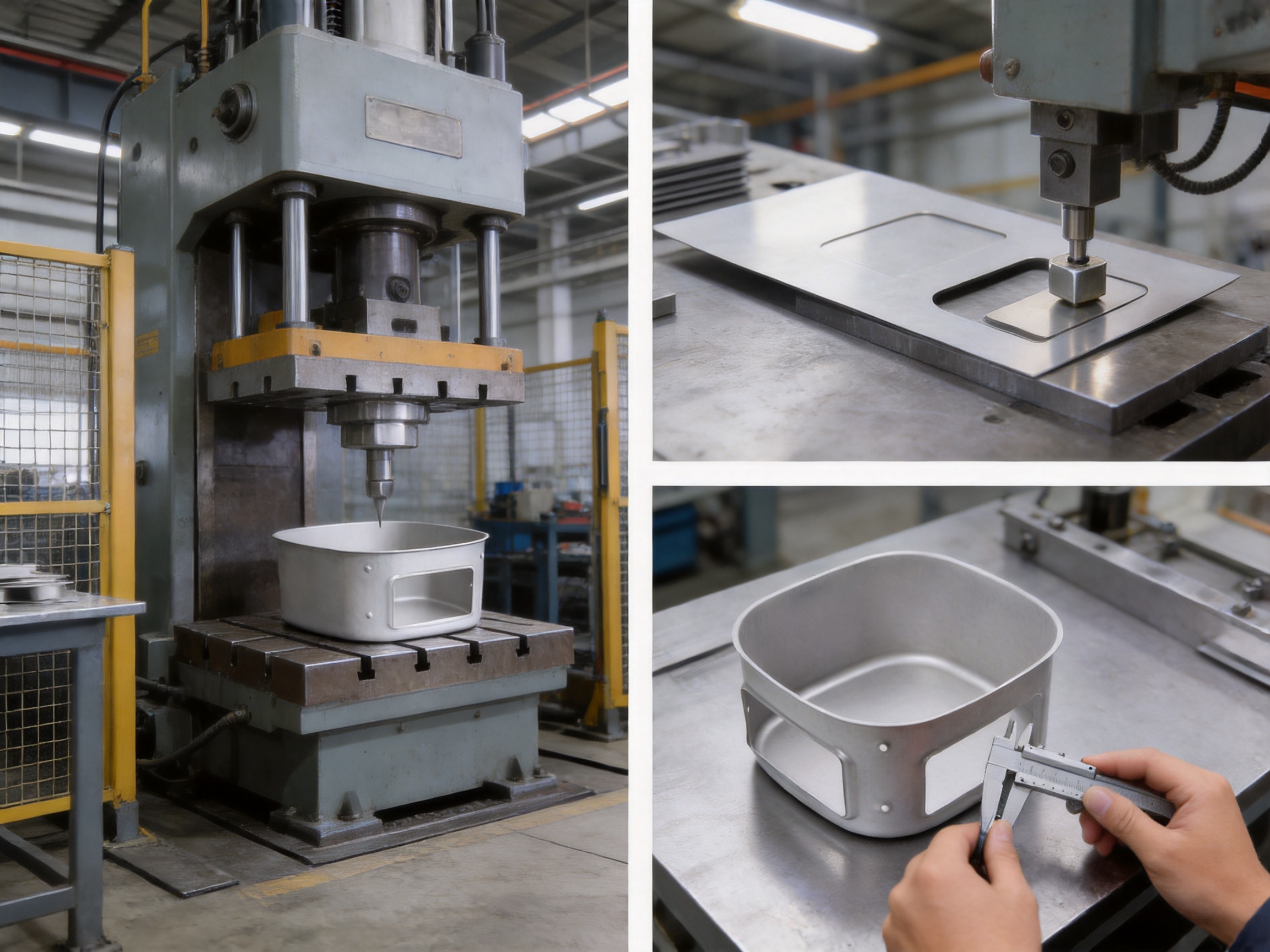

During the forming cycle, the press moves the punch into the blank while the die and blank holder guide the material. The sheet flows inward and downward to create the container walls. Press speed, lubrication, alignment, holding force, and tool condition all influence the result.
Consistent lubrication helps reduce friction between the sheet and tooling. It can improve material flow, reduce surface damage, and extend tool life. The selected lubricant must be compatible with the material, process, cleaning method, and final application. Where the finished product is intended for hygienic use, residue removal and cleaning requirements should be considered during process planning.
Operators and process engineers monitor the formed parts for wrinkles, cracks, tearing, thinning, distortion, surface marks, and dimensional variation. If necessary, the process can be adjusted through changes to blank size, draw sequence, holding force, lubrication, tool geometry, or press parameters.
After drawing, the container may have excess material around the upper edge or flange. Trimming removes this material and establishes the final outline. The trimmed edge can be designed for subsequent assembly, sealing, fastening, folding, or appearance requirements.
Edge preparation may include deburring, rounding, flattening, or additional forming. This is particularly important when the container will be handled manually, when wiring passes through an opening, or when the edge is close to a gasket or sealing surface.
Cutouts can be produced at different stages depending on their location and geometry. Some openings may be pierced in the flat blank before drawing. Others may be created between forming stages, when the part has a partially formed shape. Openings that require close positional control or that could distort during drawing may be processed after the main container shape is complete.
The choice of timing affects both dimensional accuracy and forming stability. A cutout made too early may deform as the material flows during drawing. A cutout made too late may require specialized tooling to support the formed wall. The manufacturing team evaluates each opening based on its size, position, proximity to corners, required tolerance, and relationship to the forming direction.
Cutout edges should be inspected for burrs, cracks, sharp projections, and distortion. If the opening is used for cables, tubes, or moving components, protective edge treatment may be required. If it is used for drainage or ventilation, the opening pattern should be checked for obstruction after forming and finishing.
Depending on the specification, secondary operations may include additional punching, bending, tapping, riveting, welding of small features, embossing, calibration, or assembly. The purpose of the deep-drawn process is to reduce unnecessary secondary operations, but certain designs require additional features that cannot be created efficiently in the primary drawing stage.
Secondary operations should be planned to preserve the dimensional stability and surface quality of the container. For example, excessive clamping force during a later punching operation could distort a thin wall. Suitable fixtures and supports can help maintain the correct shape.
After forming and cutout processing, the container may receive a specified surface finish. Brushing can produce a uniform linear texture, polishing can create a smoother and more reflective surface, and sandblasting can provide a matte appearance. Electropolishing may be selected for suitable stainless-steel parts where improved smoothness and cleanability are important.
Finishing operations must be controlled carefully around corners, openings, flanges, and formed transitions. Uneven treatment can affect appearance and may create inconsistent surface roughness. The selected process should also be compatible with the required dimensional tolerance, since aggressive material removal or deformation could affect fit.
Cleaning after finishing is important. Residual abrasive particles, oil, polishing compound, metal fines, and processing chemicals should be removed according to the customer’s requirements. Parts intended for food-processing, medical, or laboratory equipment may require more stringent cleaning and handling procedures than general industrial components.
Final inspection typically includes visual examination, dimensional verification, cutout position checks, edge inspection, surface assessment, and quantity confirmation. Depending on the project, additional checks may include wall-thickness measurement, leak testing, load testing, roughness measurement, material verification, or functional assembly testing.
Inspection records can be prepared according to the customer’s quality plan. Important dimensions should be measured with appropriate instruments and reference datums. For containers with multiple openings, it is useful to inspect the relationship between the cutouts and the main formed surfaces rather than checking each dimension independently.
Packaging should protect the surface finish and prevent deformation. Individual wrapping, separators, protective films, custom trays, or reinforced cartons may be used according to the product geometry and shipping conditions. Clean, dry packaging is especially important for parts that will be used in hygienic or appearance-sensitive applications.
The location of a cutout has a direct effect on manufacturability. Openings positioned too close to a corner, flange, bead, or deep-drawn transition may interfere with material flow or weaken the local wall. Maintaining an appropriate distance from high-strain areas can improve forming stability and reduce the risk of cracking.
When an opening must be located near a formed feature, the design may require a larger radius, a reinforced border, a different forming sequence, or a secondary operation. The best solution depends on the required function and tolerance.
Rounded openings are generally easier to form and can reduce stress concentration compared with sharp internal corners. If a rectangular or slot-shaped opening is required, radiused corners are often beneficial. The final radius should be selected according to the sheet thickness, material, edge function, and tooling method.
Sharp external corners can also affect the overall container. Generous corner radii may improve material flow, reduce thinning, and create a smoother appearance. They may also make the container easier to clean and less likely to damage adjacent components during assembly.
Drainage openings should be positioned according to the actual orientation of the container during use, cleaning, storage, and transport. A hole that is low in the drawing but not low in the installed position may not provide effective drainage. Designers should consider tilt angles, internal obstructions, and possible accumulation points.
Ventilation cutouts should be evaluated for airflow, protection, noise, and contamination. The opening size and pattern can be adjusted to achieve the required balance between ventilation and physical protection. If the container shields electrical or mechanical components, the cutouts should not compromise the necessary enclosure function.
Slots and holes used for wires or cables should have smooth edges. Depending on the assembly, a grommet, bushing, edge protector, or rolled feature may be required. The opening should provide sufficient clearance without allowing excessive movement that could cause abrasion.
The cutout location should also support the cable routing path. A well-positioned opening can reduce bending stress, simplify installation, and improve service access. During design review, the manufacturer can evaluate the opening against the expected cable diameter, connector size, bend radius, and assembly direction.
Surface finish is more than an aesthetic choice. It can influence cleanability, scratch visibility, friction, corrosion behavior, and the way the container interacts with the surrounding assembly. The correct finish depends on the operating environment and the customer’s product standards.
A brushed finish is often selected for visible appliance components and industrial parts where a consistent directional texture is desired. It can provide a practical appearance while helping to mask minor handling marks. The brushing direction may be specified when the container is part of a visible product.
Polished surfaces can provide a bright appearance and may support easier cleaning when properly processed. However, polishing quality must be controlled carefully to avoid uneven reflections, swirl marks, or inconsistent transitions around cutouts and corners.
Sandblasted surfaces provide a more uniform matte texture. They can be appropriate where glare reduction or a non-reflective appearance is required. The surface roughness should be considered if the component will contact sensitive materials or if residue removal is important.
Electropolishing can improve the smoothness of suitable stainless-steel surfaces by removing a controlled amount of material from the surface. It may help reduce microscopic irregularities and support cleaning in appropriate applications. The process must be specified and verified according to the material grade, dimensional requirements, and intended use.
For food-processing or medical applications, the finished container should be evaluated against the applicable hygiene, cleaning, material, and regulatory requirements. A surface finish alone does not establish compliance. The entire product design, material, manufacturing process, cleaning procedure, and end-use environment must be considered.
Deep-drawn containers can be used in food-processing machinery, ingredient handling systems, commercial kitchen equipment, and preparation appliances. Stainless-steel construction, smooth surfaces, drainage openings, and reduced seams can support designs that prioritize cleanliness and maintenance.
Examples may include formed trays, collection pans, covers, internal housings, ingredient containers, splash guards, and appliance components. The design should be reviewed for cleaning access, liquid retention, surface finish, and compatibility with the relevant food-contact requirements.
Medical and laboratory equipment often requires parts that are durable, cleanable, dimensionally stable, and resistant to repeated handling or cleaning. Deep-drawn containers may serve as equipment housings, trays, protective covers, instrument supports, or internal structural parts.
Cutouts can accommodate cables, connectors, tubing, ventilation, drainage, or inspection. When used in these environments, the material, surface finish, edge condition, cleaning process, and packaging method should be defined with particular care.
Kitchen appliances combine functional and appearance requirements. Components may need to fit tightly within a limited space while presenting a clean, durable surface to the user. Deep-drawn containers can be used for heating-related parts, internal trays, protective covers, structural housings, and other appliance accessories.
The design may require openings for air circulation, controls, wiring, heating elements, sensors, or fastening. Stainless-steel options and customized finishes can support both performance and product appearance.
Automotive stamping parts must often withstand vibration, temperature changes, handling, and restricted installation space. A deep-drawn container can be used as a protective shield, mounting housing, bracketed enclosure, fluid-related component, or structural support, depending on the material and design.
Cutouts may be required for wiring, fasteners, ventilation, drainage, sensor access, or alignment. Automotive applications typically require clear specifications for dimensional tolerances, material traceability, corrosion performance, inspection, and production consistency.
Deep-drawn metal housings can protect electronic components from impact and provide a stable mounting structure. Openings can be designed for connectors, cables, heat dissipation, ventilation, switches, and inspection points.
Metal containers may also support electromagnetic shielding when the design, material, joints, and assembly provide the required continuity. Shielding performance depends on the complete enclosure system, including covers, fasteners, gaskets, and openings, so it should be evaluated at the assembled-product level.
Industrial machinery may use deep-drawn containers as guards, covers, guides, collection pans, protective housings, or formed mechanical subassemblies. Their strength, compact geometry, and repeatability can simplify equipment construction.
In these applications, designers may prioritize load capacity, impact resistance, vibration behavior, access for maintenance, and compatibility with oils, coolants, or cleaning chemicals. Cutouts can improve serviceability while keeping the main component compact.
Welded assemblies provide design flexibility and can be economical for low-volume or very large structures. However, they require multiple panels, joint preparation, welding, cleaning, and distortion control. A deep-drawn container can reduce the number of parts and seams, producing a more integrated component.
Deep drawing is particularly attractive when many units with the same geometry are required. Although initial tooling investment may be higher than for a simple fabricated prototype, the per-unit cost can become competitive as volume increases. The appropriate method depends on quantity, geometry, tolerances, material, and development stage.
Machining can produce accurate cavities and complex details, but removing material from a solid block may create significant waste, long cycle times, and higher costs for larger containers. Deep drawing forms the container from sheet material and can therefore provide a more material-efficient solution for suitable geometries.
Machining may still be appropriate for small quantities, extreme tolerances, special materials, or features that cannot be formed economically. In some projects, deep drawing and machining are combined, with drawing used for the main shape and machining used for precision interfaces.
Plastic molding can offer low weight, integrated features, and economical mass production for suitable products. Metal deep-drawn containers may be preferred when higher temperature resistance, impact strength, rigidity, corrosion resistance, or a metallic appearance is required.
The comparison should include the operating temperature, chemical exposure, mechanical loads, cleanliness requirements, recyclability, expected service life, and total product cost. Material selection should be based on performance rather than simply the initial component price.
Yuyao Hongli Optoelectronics Co., Ltd. is a comprehensive manufacturing enterprise based in Yangming Science and Technology Industrial Park, Yuyao City, Zhejiang Province, China. Founded in 2000, the company has more than 20 years of industry experience in metal stamping and related manufacturing services.
The company operates a modern factory with an area of approximately 5,000 square meters and employs more than 60 people. Its production capabilities cover metal stamping parts, deep-drawn parts, bending parts, kitchen appliance accessories, automotive stamping parts, hardware products, plastic products, optical instruments, educational instruments, household electric heaters, and small household appliances.
This broad product experience is useful for customers developing deep-drawn containers with cutouts because the component may need to interface with stamped brackets, bent supports, plastic housings, appliance structures, or automotive subassemblies. Understanding related manufacturing processes can help improve the design of the complete product rather than treating the container as an isolated part.
Hongli supports OEM and ODM customization, rapid prototyping, and production conversion. These services can assist customers at different stages of development, from an initial concept or sample to a finalized drawing and repeat production program. The manufacturer can review the design, recommend suitable forming approaches, coordinate tooling, and organize production according to the required quantity and delivery schedule.
The company emphasizes quality control, stable delivery, and after-sales service. For a custom deep-drawn container, these factors are important because product success depends not only on the forming operation but also on communication, drawing control, material consistency, inspection, packaging, and response to production feedback.
Experience in stamping, bending, and deep drawing provides a foundation for selecting the most efficient process for each feature. Some containers may require a combination of drawing, trimming, piercing, bending, and secondary forming. An integrated manufacturing partner can evaluate these operations together and reduce unnecessary transfers between suppliers.
This can simplify project communication and support better control over the final component. It may also reduce the risk that one supplier forms the container without considering how another supplier will create the cutouts, brackets, or assembly features.
Customers may require prototypes, pilot batches, medium-volume production, or large repeat orders. A flexible production organization can adjust its planning, tooling strategy, and inspection approach according to the project stage.
Prototype and small-batch work can help verify fit, function, surface appearance, and assembly before full production. Once the design has been validated, production can transition to a more efficient repeat manufacturing process. This staged approach may help reduce development risk and avoid costly changes after mass production begins.
Every deep-drawn container with cutouts has a different combination of dimensions, openings, material, finish, and application requirements. Customization therefore requires accurate technical communication. Drawings, three-dimensional files, sample parts, photographs, tolerance notes, and application descriptions can all help define the project.
Hongli’s OEM and ODM services are intended to support this customization process. Customers can discuss the required geometry, cutout pattern, sheet thickness, finish, packaging, and order quantity before tooling and production are finalized. Clear communication at this stage helps align expectations and reduce avoidable revisions.
Quality control for deep-drawn containers should address both visible appearance and functional performance. A part can look acceptable while still having a dimensional issue that prevents assembly, so inspection should be based on the complete product specification.
Important dimensional checks may include overall length, width, height, depth, wall profile, flange dimensions, corner radii, flatness, and the relationship between the container and its datum features. Cutouts should be checked for size, position, orientation, edge condition, and burr control.
Visual inspection should look for cracks, wrinkles, tearing, excessive thinning, dents, tool marks, scratches, discoloration, surface contamination, and inconsistent finishing. Some surface marks may be acceptable for an internal component but unacceptable for a visible appliance part, so acceptance criteria should be defined in advance.
Material verification may be required when corrosion resistance, strength, or regulatory requirements are important. Depending on the application, the customer may request material certificates, dimensional reports, first-article inspection, process records, or batch identification.
Functional inspection can include trial assembly with mating parts, drainage checks, fit verification, cable routing checks, or leak testing where applicable. The exact inspection plan should reflect the role of the container in the finished product.
A complete technical inquiry helps the manufacturer provide a more accurate feasibility review and quotation. The customer should provide a drawing or three-dimensional model whenever possible. If no drawing is available, photographs, sketches, sample dimensions, and a description of the intended function can provide a starting point.
The inquiry should identify the preferred or required material, sheet thickness, surface finish, quantity, annual demand, prototype requirements, packaging expectations, and delivery destination. It should also indicate whether the container will be exposed to water, chemicals, heat, food products, medical cleaning agents, vibration, impact, or outdoor conditions.
Cutout information should include the number of openings, their shapes, dimensions, locations, tolerances, and purpose. If openings are intended for cables, tubes, fasteners, drainage, or ventilation, the related mating requirements should be included.
Customers should also identify critical dimensions and non-critical dimensions. Not every feature requires the same tolerance, and applying unnecessarily tight tolerances can increase tooling and inspection costs. A practical tolerance strategy focuses precision where it affects assembly and function.
Samples or prototypes can be useful when the product must match an existing component. However, a sample alone may not communicate hidden requirements such as material grade, surface roughness, hardness, or service environment. Combining a sample with application information generally produces a more reliable manufacturing plan.
The cost of a deep-drawn container is influenced by material, thickness, part size, depth, geometry, cutout complexity, tooling, surface finish, secondary operations, inspection, packaging, order volume, and logistics. A simple container with one opening will have different cost drivers from a deep, multi-stage component with numerous precision cutouts.
Tooling is a significant consideration. Dedicated dies and fixtures require engineering and manufacturing effort, but they support repeatability and efficient production. For higher quantities, the tooling investment can be distributed across more units, improving the overall unit economics.
Material utilization also affects cost. Blank development and nesting can help reduce scrap, especially when the material is expensive. However, the smallest possible blank is not always the best choice if it makes forming unstable or increases the risk of defects. The production objective is to balance material efficiency with reliable forming.
Surface finish may add cost through additional labor, equipment, inspection, cleaning, and protective packaging. Customers should specify the finish based on actual performance or appearance requirements rather than selecting an unnecessarily complex treatment.
Production planning should distinguish between prototype quantities and long-term demand. A prototype may be produced using a flexible or partially adapted process, while mass production may use dedicated progressive or multi-stage tooling. Discussing expected future volume early can help avoid selecting a development approach that is unsuitable for later scale-up.
Metal deep drawing can support durable products with long service lives. A component that resists corrosion, impact, and repeated cleaning may reduce the need for frequent replacement. Long service life can contribute to lower maintenance and replacement requirements over the product lifecycle.
Material efficiency is also relevant. The blank and trim scrap generated during stamping can be collected and managed through appropriate recycling channels. The amount of scrap depends on the part geometry, blank design, nesting arrangement, trimming allowance, and production method.
Operational efficiency can be improved when the container is designed with integrated cutouts and formed features. Reducing manual drilling, cutting, or fitting during final assembly may save time and decrease variation. A part that arrives ready for installation can also reduce the risk of damage caused by uncontrolled secondary modifications.
Environmental suitability should be evaluated for the complete product. Corrosion resistance, temperature exposure, chemical compatibility, cleaning practices, and end-of-life recycling all influence the sustainability of the final design. Selecting a durable material and avoiding unnecessary over-specification can help balance performance and resource use.
It is a three-dimensional metal container formed from sheet material through a deep-drawing process and provided with customized openings. The openings may support ventilation, drainage, wiring, fastening, inspection, fluid movement, or assembly.
Yes. The main body can be formed from a single sheet blank, creating a seamless or reduced-joint structure. Additional welded features may be possible when required, but the primary container body does not need to be assembled from multiple welded panels.
Thicknesses from approximately 0.5 to 3.0 millimeters can be considered, subject to the material, container size, depth, cutout pattern, forming sequence, and required performance. The final thickness should be confirmed through engineering review.
Common options include brushed, polished, sandblasted, and electropolished finishes. The appropriate finish depends on appearance, cleanability, corrosion exposure, surface roughness, and the intended application.
Yes. Cutouts can be customized in terms of shape, size, position, quantity, and function. Typical examples include vents, drainage holes, slots, cable passages, mounting holes, and inspection openings.
The correct timing depends on the location and geometry of the opening. Some cutouts can be pierced in the flat blank, while others are better created between drawing stages or after the container has been formed. The manufacturing team evaluates the design to determine the most stable and accurate approach.
Stainless steel is commonly used in food-processing, medical, laboratory, and kitchen equipment because of its corrosion resistance and cleanable surface. However, the specific material grade, finish, manufacturing controls, cleaning method, and regulatory requirements must be reviewed for the intended application. A material should not be considered compliant solely because it is stainless steel.
Yes. They may be used for protective housings, brackets, shields, structural supports, drainage components, and other automotive stamping applications. Automotive projects should define material, dimensional, corrosion, vibration, temperature, and inspection requirements clearly.
Useful information includes a drawing or three-dimensional model, material preference, thickness, surface finish, cutout details, quantity, annual demand, prototype requirements, packaging expectations, and application conditions. Samples and photographs can supplement technical drawings.
Prototype or small-batch production can be discussed as part of the OEM and ODM development process. Prototypes can help verify dimensions, fit, cutout positioning, surface appearance, and assembly before full production tooling or larger quantities are finalized.
Deep drawing can reduce seams, part count, and post-weld processing while providing a consistent formed shape. Welding may remain useful for low-volume assemblies, very large structures, or features that cannot be formed efficiently. The best method depends on geometry, volume, tolerance, material, and performance requirements.
Yuyao Hongli Optoelectronics also manufactures stamped parts, bending parts, kitchen appliance accessories, automotive stamping parts, hardware products, and related components. This can support projects requiring multiple sheet-metal processes or coordinated component sourcing.
Deep-drawn containers with cutouts provide a practical solution for applications that require a durable, cleanable, lightweight, and highly adaptable metal component. Their one-piece construction can reduce welded joints, their formed geometry can provide strength and rigidity, and their customized openings can simplify ventilation, drainage, wiring, fastening, and assembly.
The product is suitable for a broad range of industries, including food processing, medical equipment, kitchen appliances, automotive systems, electronics, laboratory equipment, and general mechanical machinery. Material thicknesses from approximately 0.5 to 3.0 millimeters and surface options such as brushed, polished, sandblasted, and electropolished finishes allow the design to be adapted to different technical and visual requirements.
Successful production depends on more than the drawing operation alone. Blank development, die design, material selection, cutout timing, edge preparation, finishing, inspection, packaging, and application review all contribute to final performance. Early cooperation between the customer and manufacturer can identify design risks, optimize tolerances, and create a more efficient production plan.
With more than 20 years of industry experience, a modern 5,000-square-meter factory, multiple stamping workshops, more than 60 employees, and capabilities covering deep drawing, stamping, bending, prototyping, OEM, and ODM services, Yuyao Hongli Optoelectronics Co., Ltd. is positioned to support customized metal component projects. Its manufacturing scope and quality-focused approach can help customers move from concept and sample development to stable repeat production.
For customers seeking reliable Drawn Metal Products, Deep Drawn Metal Parts, or Precision-Sheet/Sheet Metal Stamping, a carefully engineered deep-drawn container with cutouts can provide an effective balance of performance, customization, appearance, and production efficiency.
1. American Society for Metals. ASM Handbook: Forming and Forging. Materials Park: ASM International.
2. Society of Manufacturing Engineers. Sheet Metal Forming Processes and Design Principles. Dearborn: Society of Manufacturing Engineers.
3. American Iron and Steel Institute. Design Guidelines for Sheet Steel Forming. Washington, D.C.: American Iron and Steel Institute.
4. International Organization for Standardization. Geometrical Product Specifications and Dimensional Tolerancing Principles. Geneva: ISO.
5. International Organization for Standardization. Stainless Steels: Technical Delivery and Material Specification Principles. Geneva: ISO.
6. European Committee for Standardization. Metallic Materials and Sheet-Forming Manufacturing Guidance. Brussels: CEN.
7. Manufacturing Engineering and Technology Publications. Deep Drawing, Punching, Trimming, and Precision Sheet-Metal Operations. Industrial Manufacturing Reference Series.
8. Yuyao Hongli Optoelectronics Co., Ltd. Product and Manufacturing Information for Deep-Drawn Parts, Stamped Parts, Bending Parts, and Automotive Stamping Components.
