Deep-Drawn Rectangular Containers with Handles for Durable, Hygienic Storage

Deep-drawn rectangular containers with handles are practical metal products designed for demanding storage, handling, processing, and transport applications. Their one-piece construction, carefully formed geometry, durable material options, and hygienic surface finishes make them suitable for industrial facilities, commercial kitchens, medical environments, laboratories, food-processing operations, household appliance assemblies, and specialized equipment.

Unlike containers assembled from several separately fabricated panels, a deep-drawn container is formed from a single sheet of metal through a controlled plastic deformation process. This manufacturing approach reduces the number of seams, joints, and welded areas that may otherwise become weak points. The result is a strong, stable, and easy-to-clean container that can be adapted to different dimensions, wall thicknesses, handle configurations, and surface requirements.

The deep-drawn rectangular container with handle described in this article is manufactured for customers that require dependable metal forming, consistent production quality, and flexible customization. It is available in a range of sizes and material thicknesses from approximately 0.5 mm to 3.0 mm, depending on the application and required structural performance. Brushed, polished, and electropolished finishes can also be specified to meet different appearance, cleaning, corrosion-resistance, and hygiene requirements.

Product Overview

A deep-drawn rectangular container with a handle combines the functional capacity of a box-shaped vessel with the strength and production efficiency of deep drawing. The rectangular profile provides useful space utilization, especially where containers must fit into shelves, cabinets, workstations, equipment housings, transport systems, or production lines. The integrated or securely attached handle improves portability and makes the container easier to remove from storage areas or move between workstations.

The product can be used as a storage bin, collection container, processing tray, equipment component, kitchen accessory, or custom metal enclosure. Its exact design can be adapted according to the intended use. Customers may specify external dimensions, internal dimensions, corner radii, wall thickness, handle shape, handle location, mounting holes, openings, flanges, reinforcing features, and finishing requirements.

Because the product is created through precision sheet-metal forming, it offers an effective balance between strength, weight, manufacturability, and cost. A correctly designed deep-drawing process allows the metal sheet to flow into the forming die while maintaining a relatively uniform wall structure. This reduces the need for multiple assembly operations and supports repeatable production for both prototypes and larger orders.

The container is particularly suitable for applications where cleanliness and long-term reliability are important. Smooth surfaces are easier to wipe, wash, disinfect, or sterilize than rough or heavily jointed surfaces. When the appropriate stainless steel or other corrosion-resistant material is selected, the container can withstand frequent contact with moisture, cleaning agents, food residues, industrial contaminants, and normal handling abrasion.

Core Product Features

One-Piece Deep-Drawn Construction

The central feature of this product is its deep-drawn construction. A flat metal blank is placed over a forming die and pressed into the desired shape by a punch. During the operation, the material flows into the die cavity and develops the rectangular container profile. Depending on the depth-to-width ratio and the selected material, several drawing stages may be used to achieve the final shape without excessive thinning, wrinkling, cracking, or distortion.

A one-piece construction can provide significant benefits compared with containers made from several welded or mechanically fastened sections. Fewer joints mean fewer potential leakage paths, fewer areas where dirt can accumulate, and fewer locations requiring secondary finishing. It also improves visual consistency and can provide a cleaner internal surface, which is valuable in food, medical, laboratory, and hygiene-sensitive environments.

Rectangular Geometry for Efficient Space Utilization

Rectangular containers use available space efficiently. Compared with round containers, they can often be positioned closer together, placed flush against walls, stacked in organized arrangements, or integrated into rectangular equipment compartments. This makes the design useful in warehouses, production lines, cabinets, counters, commercial kitchens, and transport systems.

The geometry can be customized to suit a particular installation. The design team can evaluate the relationship between length, width, depth, corner radius, wall thickness, and handle placement. Appropriate corner radii help the material flow during drawing while also improving cleanability and reducing stress concentration. The final design therefore considers both manufacturing feasibility and the practical demands of the intended application.

Integrated or Securely Mounted Handle

The handle improves usability by giving operators a convenient gripping point. It can be formed as part of the container design or attached through a controlled secondary operation, depending on the product specification. Handle dimensions, clearance, orientation, and mounting location can be adjusted according to the expected load and method of use.

A well-designed handle must do more than provide a gripping surface. It must transfer the weight of the container and its contents without excessive deformation. Its attachment area should be compatible with the container wall and should not create sharp edges, unnecessary crevices, or difficult-to-clean recesses. For heavier applications, reinforcing features or thicker material may be considered during design review.

Flexible Material Thickness

The product can be manufactured in thicknesses ranging from approximately 0.5 mm to 3.0 mm, subject to the selected material, dimensions, forming depth, and performance requirements. Thinner materials can reduce weight and material consumption, while thicker materials may provide greater rigidity, impact resistance, load-bearing capacity, and service life.

Material thickness is not selected independently from the container geometry. A deep or narrow container may require a different thickness from a shallow or wide container. The forming ratio, corner radius, expected operating temperature, contents, lifting method, and frequency of handling must all be evaluated. Engineering review helps identify a suitable balance between durability, cost, weight, and production efficiency.

Multiple Surface Finishes

Surface finishing can be selected according to the application. Brushed finishes provide a consistent satin appearance and can help mask minor handling marks. Polished finishes create a brighter and smoother surface where appearance or cleanability is important. Electropolished finishes can further improve surface smoothness and support demanding hygiene requirements by reducing microscopic surface irregularities.

The finishing process may also influence corrosion resistance, maintenance requirements, and the visual quality of the finished part. A suitable finish can make the container easier to inspect and clean while supporting a professional appearance in visible equipment or commercial environments. Surface specifications should identify the required appearance, roughness level where applicable, edge condition, and protection method during packing and delivery.

Deep-drawn rectangular container with handle

Advantages Compared with Conventional Fabricated Containers

Fewer Seams and Potential Weak Points

Traditional rectangular containers may be manufactured by cutting several panels, bending each panel separately, and welding or fastening the pieces together. This method can be effective for certain designs, but it introduces additional seams and assembly areas. Every seam may require inspection, grinding, polishing, cleaning, or sealing.

Deep drawing reduces the number of joints required for the main container body. This can improve structural continuity and create a more uniform internal surface. For applications involving liquids, fine powders, food materials, or frequent sanitation, the reduction of seams can be especially valuable.

Improved Cleanability

Cleanability is an important advantage in environments where contamination must be controlled. A container with smooth internal surfaces and rounded corners is generally easier to wash and inspect than a container with multiple internal weld beads, overlapping panels, or exposed fasteners. Reduced dirt retention can lower cleaning effort and help support consistent hygiene procedures.

The final level of cleanability depends on the material, finish, corner design, handle arrangement, and operating environment. Deep drawing provides a strong foundation, while appropriate finishing and careful design eliminate unnecessary recesses and rough areas. For food, medical, and laboratory applications, customers can define additional requirements for surface condition, cleaning compatibility, and sterilization procedures.

Consistent Appearance

Multi-piece fabrication can produce visible variations between panels, weld zones, and ground areas. A deep-drawn body provides a more consistent appearance because the primary shape is formed from one sheet. When combined with brushing, polishing, or electropolishing, the finished container can achieve a clean and professional appearance appropriate for visible equipment and high-quality commercial products.

Reduced Assembly Requirements

A deep-drawn container can reduce the number of production steps associated with cutting, fitting, welding, grinding, and reworking. Fewer assembly operations can shorten production time and improve repeatability, particularly when suitable tooling has been developed for the design.

Reduced assembly does not mean that quality control is less important. The formed part must still be inspected for dimensional accuracy, surface condition, wall consistency, edge quality, handle strength, and overall appearance. However, the manufacturing route can be more streamlined than a process based entirely on separately fabricated panels.

Good Strength-to-Weight Performance

Deep drawing can produce a rigid container without requiring excessive material in every area. The formed geometry itself contributes to structural stability. Side walls, bottom transitions, corners, flanges, and reinforcing features can be designed to support the expected loads.

This strength-to-weight balance is useful when operators must repeatedly lift or move the container. A lighter container can reduce handling effort, while suitable wall thickness and geometry maintain the required durability. The optimal design depends on the product’s dimensions, contents, stacking requirements, and frequency of use.

Materials and Performance Considerations

Material selection is a key part of the product development process. Stainless steel is commonly considered for applications requiring corrosion resistance, hygiene, strength, and a professional appearance. Other sheet metals may be appropriate for applications where different weight, conductivity, cost, or forming characteristics are required.

The selected material must be compatible with the forming process. Important factors include ductility, tensile strength, yield strength, work-hardening behavior, surface quality, and resistance to cracking. Material certificates or inspection records may be requested for projects where traceability is important.

For food-processing, medical, laboratory, or wash-down applications, the material should be selected according to the chemicals, temperatures, cleaning methods, and substances that will contact the container. Corrosion resistance is influenced not only by the base metal but also by the surface finish, exposure conditions, contact with dissimilar metals, and maintenance practices.

For industrial applications, the customer should consider impact, vibration, stacking, abrasion, thermal cycling, and exposure to oils or chemicals. In automotive or appliance-related applications, the container may need to meet additional requirements relating to dimensional consistency, mounting interfaces, production volume, and integration with other components.

Advanced Deep-Drawing Manufacturing Process

1. Product Design and Technical Review

Production begins with a review of the product drawing, three-dimensional model, sample, or application description. Engineers evaluate the container dimensions, material, thickness, draw depth, corner radii, handle structure, tolerances, and surface requirements.

At this stage, potential forming risks are identified. Excessive depth, small corner radii, abrupt geometry changes, and unsuitable material flow can lead to wrinkles, cracks, thinning, or dimensional instability. Design adjustments made before tooling begins can reduce development time and improve production reliability.

The technical review also considers how the container will be used. A storage tray may require different features from a pressure-free processing vessel, a kitchen accessory, or an automotive component. Load direction, lifting method, cleaning conditions, installation space, and interaction with other parts should be included in the design discussion.

2. Material Preparation

The selected sheet material is prepared into blanks of suitable size and shape. Blank dimensions are calculated according to the final container dimensions, forming depth, material flow, trimming allowance, and the number of drawing operations required.

Material handling must protect the sheet from scratches, contamination, and deformation before forming. Surface defects on the blank may become more visible after drawing, particularly on polished or highly reflective products. Proper storage and careful transfer therefore contribute to final appearance quality.

3. Tooling and Die Development

Deep-drawing dies control the external shape of the container while the punch controls the internal profile. Tooling may include blank holders, draw beads, guide components, trimming tools, piercing tools, and forming inserts. The design of these elements affects material flow, dimensional accuracy, and surface condition.

The die radius is particularly important. A radius that is too small may increase local stress and cause cracking, while a radius that is too large may reduce shape control or contribute to wrinkling. The blank-holder force must also be balanced. Insufficient force can allow wrinkles, while excessive force can restrict material flow and increase the risk of tearing.

For complex or deep containers, multiple drawing stages may be used. Intermediate forming operations gradually develop the final geometry and reduce stress on the material. Between stages, suitable inspection and process adjustments help maintain repeatability.

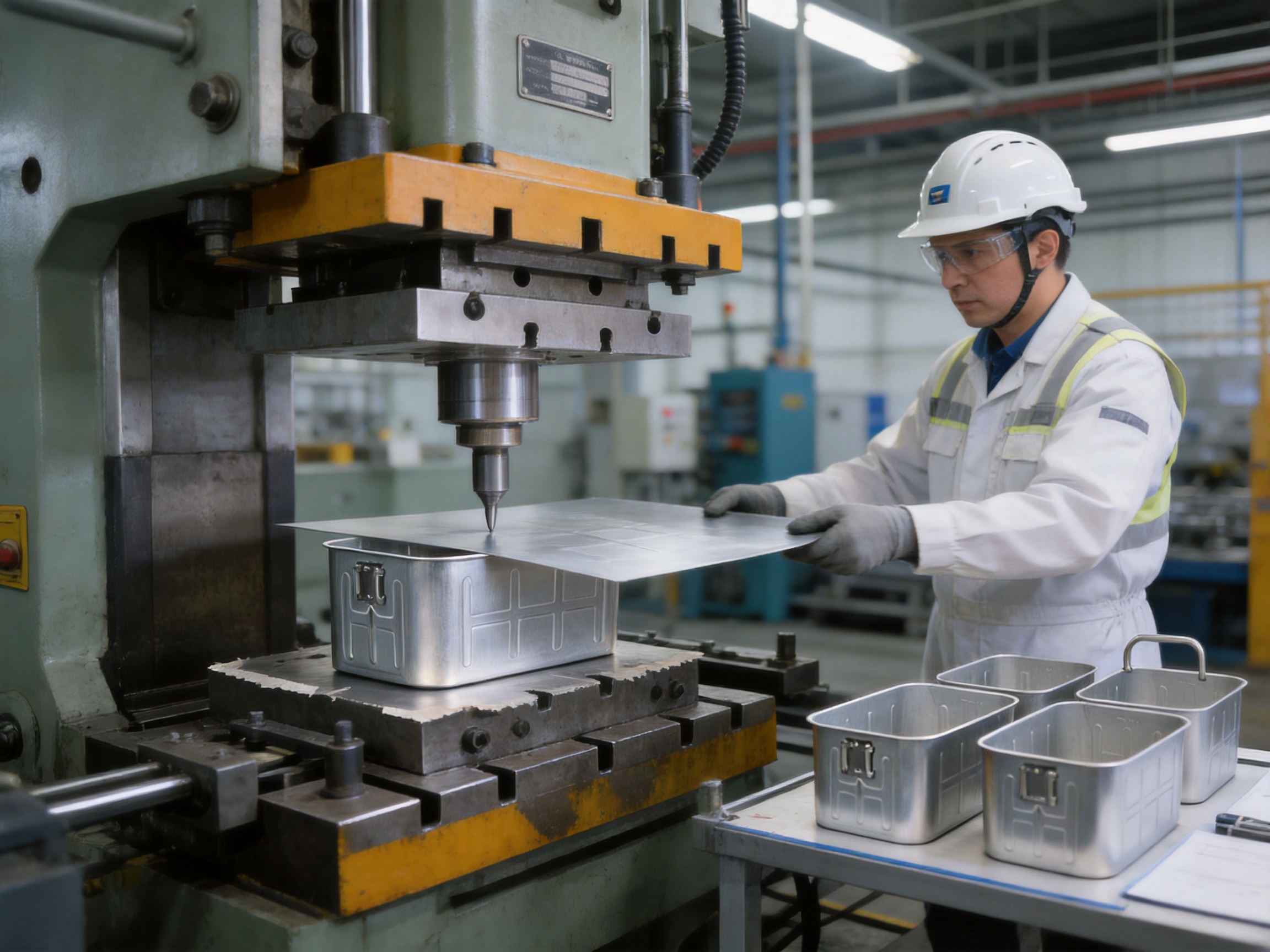

4. Controlled Press Forming

During forming, the blank is positioned in the die and pressed by the forming equipment. The material flows under carefully controlled pressure and movement. Press capacity, forming speed, lubrication, tooling alignment, and blank-holder force are monitored to support stable production.

Modern stamping workshops use process controls and experienced operators to maintain consistent forming conditions. The objective is to produce containers with accurate dimensions, clean corners, controlled wall deformation, and minimal surface marking.

Deep drawing is not simply a matter of applying force to a sheet. It is a controlled metal-flow process. The material must move into the cavity at an appropriate rate while remaining supported by the tooling. Process knowledge is essential because different materials and dimensions require different forming parameters.

5. Trimming and Secondary Forming

After the primary drawing operation, excess material may remain around the upper edge. Trimming removes this allowance and establishes the final opening height. Depending on the design, additional operations may create flanges, mounting holes, drain openings, slots, reliefs, or other functional features.

Secondary forming may also be used to refine the rim, reinforce the handle area, create a rolled edge, or improve compatibility with a lid, frame, or adjoining component. These operations are planned to avoid distortion of the main container body.

6. Handle Formation and Installation

The handle can be formed or attached according to the product design. If the handle is integrated into the sheet structure, its geometry is developed as part of the forming sequence. If it is a separate component, the attachment method may include welding, mechanical fastening, or another specified process.

Handle production requires attention to strength, comfort, clearance, alignment, and cleanliness. Edges should be treated to prevent sharp projections. The attachment area should be inspected for secure connection and acceptable appearance. For containers intended to carry heavier contents, load testing or application-specific validation may be considered.

7. Surface Treatment

Surface treatment is selected according to customer requirements. Brushing creates a uniform directional texture. Polishing produces a brighter appearance and may improve smoothness. Electropolishing removes a controlled amount of material from the surface through an electrochemical process, producing a smoother and more refined finish when properly specified.

Edges, corners, handle transitions, and internal surfaces require particular attention. Surface treatment should be applied consistently, and the finished part should be protected against scratches during inspection, packing, and transportation.

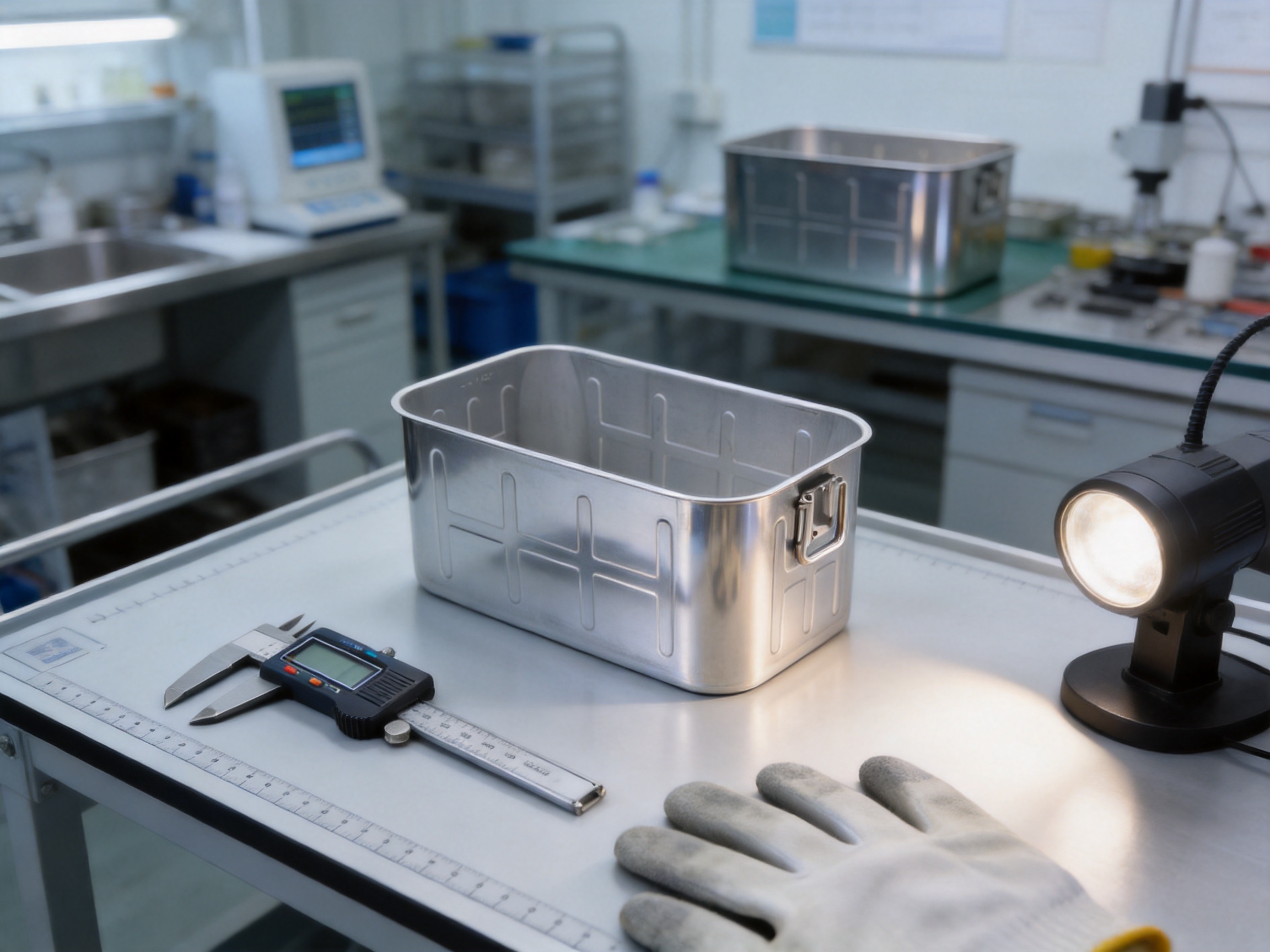

8. Inspection and Quality Control

Quality control can include incoming material verification, first-piece inspection, in-process checks, final dimensional inspection, visual examination, handle evaluation, and surface-finish review. The specific inspection plan depends on the product’s application and the customer’s quality requirements.

Typical dimensional checks may include length, width, depth, opening size, corner dimensions, flange position, wall thickness where measurable, and handle location. Visual checks look for cracks, wrinkles, dents, deep scratches, discoloration, burrs, incomplete forming, and surface contamination.

For repeat orders, process records and inspection data can support consistency from one production batch to the next. Stable tooling, documented operating parameters, and clear acceptance criteria help reduce variation and improve delivery reliability.

Technical Specification Overview

Item	Typical Specification or Option	Application Consideration
Product type	Deep-drawn rectangular container with handle	Suitable for storage, handling, processing, equipment integration, and custom applications
Manufacturing method	Precision deep drawing with secondary stamping, trimming, forming, or finishing	Supports one-piece construction and repeatable production
Material thickness	Approximately 0.5 mm to 3.0 mm	Selected according to dimensions, load, forming depth, and service conditions
Shape	Rectangular body with customized corner radii	Efficient use of storage and equipment space
Handle	Integrated or securely mounted handle	Designed for portability, clearance, load transfer, and operator convenience
Surface finishes	Brushed, polished, electropolished, or customer-specified finish	Supports appearance, cleanability, hygiene, and corrosion-resistance requirements
Customization	Dimensions, thickness, openings, flanges, holes, handle configuration, and finish	Enables OEM and ODM adaptation for different equipment or operating environments
Quality focus	Dimensional accuracy, forming integrity, edge quality, handle strength, and surface condition	Helps ensure dependable use and consistent batch production

Applications Across Different Industries

Food Processing and Commercial Kitchens

In food-related environments, containers must be easy to clean, resistant to moisture, and suitable for frequent handling. A deep-drawn rectangular container with a smooth finish can be used for ingredient handling, collection, preparation, storage, equipment integration, or customized kitchen systems.

The rectangular shape can help optimize counter and shelf space. Rounded transitions and reduced seams can support efficient washing and inspection. The handle permits staff to move the container without gripping its inner surfaces, which can improve handling convenience and help maintain orderly workflows.

Medical and Laboratory Environments

Medical and laboratory facilities often require metal components that can tolerate repeated cleaning and controlled handling. Depending on the selected material and surface finish, the container may be used for instrument handling, equipment accessories, sample-related workflows, storage, or waste collection.

These applications require careful attention to the cleaning and sterilization method. The product should be reviewed against the specific chemicals, temperatures, and procedures used by the customer. Electropolished surfaces may be considered where a smoother and more refined finish is required.

Industrial Storage and Material Handling

Industrial users can apply the container to parts storage, component collection, production-line transfer, work-in-process handling, and maintenance operations. The robust metal body is suitable for environments where plastic bins may be exposed to heat, sharp components, abrasion, or repeated impact.

Different thicknesses and reinforcing features can be considered according to the load. Handles can improve movement between workstations, while rectangular dimensions support organized storage in racks, cabinets, drawers, or dedicated carts.

Household Appliances and Kitchen Equipment

Deep-drawn parts are widely used in household appliances because they combine functional form with efficient mass production. The rectangular container may serve as an internal component, removable tray, collection vessel, protective enclosure, or kitchen appliance accessory.

Designers can coordinate the container with surrounding panels, rails, hinges, covers, heating elements, drainage systems, or mounting structures. Dimensional consistency is important where the container must slide, fit, rotate, or lock into an appliance assembly.

Automotive and Transportation Equipment

Automotive stamping parts require consistent dimensions, stable production, and suitability for integration into larger assemblies. A customized deep-drawn container or tray may be used for storage, protection, fluid-related functions, tool organization, or vehicle equipment systems, subject to the technical requirements of the application.

Automotive projects may require detailed drawings, defined tolerances, approved materials, production validation, and traceability. The manufacturer’s experience with stamped parts, bending parts, and related metal components can support coordinated development of multiple items within one project.

Educational and Optical Equipment

Containers and formed metal components can also be incorporated into educational instruments, optical equipment, demonstration devices, and laboratory teaching products. In these applications, appearance, accurate fit, corrosion resistance, and safe edges may be especially important.

Customization and OEM/ODM Support

Every application has different space, capacity, handling, and performance requirements. For this reason, the container can be developed as a standard-style product or customized according to customer drawings, samples, sketches, and functional descriptions.

Customization may include:

• Overall length, width, and depth.

• Internal capacity and usable volume.

• Material type and thickness.

• Corner radius and bottom geometry.

• Handle shape, location, and attachment method.

• Flanges, lips, rolled edges, or reinforcing structures.

• Drain holes, ventilation openings, mounting holes, and slots.

• Brushed, polished, electropolished, or other specified finishes.

• Packaging, labeling, inspection, and delivery requirements.

OEM and ODM support is valuable when the container forms part of a larger product. The manufacturer can review the component for manufacturability, recommend suitable forming stages, and help identify opportunities to reduce unnecessary operations. Early technical communication can also prevent problems related to insufficient radii, difficult tolerances, unsuitable wall thickness, or inaccessible finishing areas.

Rapid prototyping and efficient production conversion allow a project to progress from initial concept to sample evaluation and repeat manufacturing. Prototype quantities can be used to confirm fit, appearance, handle comfort, cleaning behavior, and interaction with associated equipment before larger-scale production begins.

Manufacturing Strengths and Production Capacity

Yuyao Hongli Optoelectronics Co., Ltd. is a comprehensive manufacturing enterprise with more than 20 years of industry experience. Founded in 2000 and located in Yangming Science and Technology Industrial Park in Yuyao, Zhejiang Province, China, the company has developed from its former educational-instrument business into a professional manufacturer of metal stamping parts and related products.

The company operates a modern factory of approximately 5,000 square meters and has more than 60 employees. Multiple stamping workshops support the production of deep-drawn parts, stamped parts, bending parts, kitchen appliance accessories, automotive stamping parts, and other customized hardware products.

This range of capabilities is important for customers seeking more than one isolated component. A project may require deep drawing for a container body, stamping for brackets, bending for support plates, and additional hardware or plastic components for final assembly. Access to related processes can simplify communication and support better coordination across the product supply chain.

The company provides manufacturing, processing, wholesale, retail, import, and export services. Its production experience covers educational instruments, optical instruments, household electric heaters, small household appliances, auto parts, hardware products, plastic products, and customized sheet-metal components.

Production strengths include OEM and ODM customization, rapid prototyping, production conversion, quality control, stable delivery, and after-sales service. These capabilities support customers that require a supplier capable of handling both technical development and repeat manufacturing.

The company’s stated business philosophy emphasizes integrity, excellence, innovation, and sharing. For a customized metal component, these principles are reflected through clear technical communication, attention to forming quality, practical process recommendations, and a commitment to long-term cooperation.

Quality, Reliability, and Delivery Considerations

Reliable supply involves more than producing an acceptable first sample. The supplier must maintain consistent tooling, material control, operating procedures, inspection standards, and packaging methods across production batches.

For this type of container, quality priorities typically include the absence of cracks and tears, controlled wall deformation, stable dimensions, clean edges, reliable handle attachment, uniform surface finish, and protection from damage during transport. Customers may provide drawings, tolerance standards, inspection plans, or sample approval criteria to establish a clear basis for acceptance.

Packaging should protect polished or brushed surfaces from scratches and prevent deformation of the handle or container rim. Depending on the product size and quantity, individual wrapping, separators, protective films, cartons, pallets, or customized packaging systems may be used.

Delivery planning should consider tooling development, sample approval, material procurement, production scheduling, finishing, inspection, packaging, and transportation. Early confirmation of specifications helps reduce delays and supports stable production planning.

How to Select the Right Configuration

The first step is to define the container’s purpose. A container used for light storage may need a different design from one that carries heavy metal components or experiences frequent movement. The customer should identify the expected contents, maximum load, handling frequency, temperature range, cleaning process, and exposure to chemicals or moisture.

The next step is to establish the available installation space. External dimensions determine whether the product will fit into a rack, cabinet, appliance, vehicle, workstation, or processing line. Internal dimensions determine usable capacity. The relationship between the two is influenced by wall thickness, corner radii, handles, flanges, and other features.

Material and surface finish should then be selected. Stainless steel or another corrosion-resistant material may be preferred for wet or hygiene-sensitive environments. Brushed or polished finishes may be selected for appearance and cleanability, while electropolishing may be considered for more demanding smoothness and hygiene requirements.

Finally, handle requirements should be defined. The customer should specify whether the handle is used for occasional repositioning or frequent lifting, whether gloves will be worn, how much clearance is required, and whether the container will be stacked or placed close to other equipment.

Installation, Use, and Maintenance Recommendations

Before use, the container should be inspected for shipping damage, sharp edges, contamination, or deformation. Any protective film should be removed according to the manufacturer’s instructions. The container should be installed or placed on a stable surface that supports the expected load.

Loads should be distributed evenly where possible. Concentrated impact from heavy or sharp objects may damage the bottom or corners, even when the container is manufactured from durable metal. The handle should be used within the intended load range and should not be subjected to sudden shock or sideways force beyond the design specification.

Cleaning methods should be compatible with the selected material and finish. Non-abrasive cleaning tools are generally preferred for polished or brushed surfaces. Strong chemicals, excessive temperatures, or prolonged exposure to corrosive substances should be evaluated before use.

Routine inspection can identify loose handle attachments, dents, scratches, corrosion, or changes in shape. Early attention to damage can help prevent further deterioration and maintain safe handling. In hygiene-sensitive applications, cleaning and inspection procedures should follow the customer’s internal standards and applicable industry requirements.

Q&A

What is a deep-drawn rectangular container?

It is a metal container formed from a sheet blank through a controlled pressing process. The sheet is drawn into a die to create the rectangular body, often with fewer seams than a container assembled from separate panels.

What are the main benefits of deep drawing?

Deep drawing can provide one-piece construction, good structural stability, efficient material use, consistent appearance, reduced assembly requirements, and smooth surfaces that are easier to clean. The exact benefits depend on the material, tooling, dimensions, and forming design.

What thicknesses are available?

The product can be customized in thicknesses from approximately 0.5 mm to 3.0 mm, subject to the selected material, dimensions, forming depth, load requirements, and production feasibility.

Can the container dimensions be customized?

Yes. Length, width, depth, corner radius, wall thickness, handle location, openings, flanges, mounting features, and surface finish can be developed according to customer drawings, samples, or functional requirements.

Which surface finishes can be provided?

Common options include brushed, polished, and electropolished finishes. The appropriate finish depends on the required appearance, cleanability, corrosion resistance, surface smoothness, and operating environment.

Is the handle integrated into the container?

The handle may be integrated into the formed design or attached through a controlled secondary operation. The choice depends on the required load, geometry, appearance, cleaning needs, and overall product design.

Can this product be used in food or medical environments?

It may be suitable for food, medical, laboratory, and hygiene-sensitive applications when the material, finish, geometry, cleaning method, and applicable requirements are properly specified. The customer should confirm compatibility with the intended cleaning, sterilization, and operating conditions.

How does it compare with a welded rectangular container?

A deep-drawn container can reduce the number of seams and welded areas, creating a more continuous body with fewer potential dirt-collection points. A welded design may still be appropriate for certain large, complex, or low-volume products. The best method depends on geometry, quantity, material, tolerance, and application requirements.

Can prototypes be produced before mass production?

Prototype development can be supported to verify dimensions, fit, appearance, handle usability, surface finish, and interaction with associated equipment. Prototype planning should be discussed early because tooling and process requirements vary by design.

What information should be provided for a quotation?

Useful information includes drawings or samples, overall dimensions, material preference, thickness, quantity, handle requirements, surface finish, tolerances, application environment, packaging needs, and delivery expectations. Photographs and functional descriptions can also help when a complete drawing is not yet available.

What industries can use this container?

Potential industries include food processing, commercial kitchens, medical equipment, laboratories, industrial storage, household appliances, automotive equipment, educational instruments, optical instruments, and general hardware manufacturing.

How is quality controlled?

Quality control may include material verification, first-piece approval, in-process inspection, dimensional checks, surface inspection, edge inspection, handle evaluation, final inspection, and packaging review. The inspection plan can be adapted to customer specifications and application requirements.

Conclusion

The deep-drawn rectangular container with handle is a versatile metal product that combines practical storage capacity, reliable handling, structural stability, and adaptable finishing. Its one-piece construction can reduce seams and assembly requirements while supporting cleanability and a consistent professional appearance.

Available in customized dimensions and material thicknesses from approximately 0.5 mm to 3.0 mm, the container can be designed for light-duty storage, industrial handling, kitchen equipment, food processing, laboratory use, medical applications, appliance integration, and automotive-related systems. Brushed, polished, and electropolished surfaces provide additional flexibility for appearance, hygiene, maintenance, and corrosion-resistance requirements.

Yuyao Hongli Optoelectronics Co., Ltd. combines more than two decades of manufacturing experience with a modern factory, multiple stamping workshops, a skilled workforce, deep-drawing capability, related sheet-metal processes, OEM/ODM support, rapid prototyping, and quality-focused production management. This combination enables customers to develop dependable custom components and move efficiently from design review to samples and repeat production.

For customers seeking a strong, hygienic, space-efficient, and customizable metal container, precision deep drawing offers a practical alternative to conventional multi-piece fabrication. With appropriate material selection, tooling design, surface treatment, inspection, and application review, the product can deliver long-term performance across a wide range of demanding environments.

References

1. Fundamentals of Sheet Metal Forming and Deep-Drawing Technology, technical manufacturing reference.

2. Principles of Metal Stamping, Press Tool Design, and Production Control, industrial engineering reference.

3. Stainless Steel Surface Finishing and Corrosion-Resistance Practices, materials engineering reference.

4. Good Manufacturing Practices for Food-Contact and Hygiene-Sensitive Metal Equipment, industry guidance reference.

5. Quality Control Methods for Precision Sheet-Metal Components, manufacturing inspection reference.

6. Product and company information supplied for the deep-drawn rectangular container with handle and related customized metal components.

Product: Deep-drawn rectangular container with handle
