Precision Stamped Parts with a Polka Dot Pattern Base: Design, Performance, and Manufacturing Advantages

Introduction

Stamped parts with a polka dot pattern base combine practical engineering with a distinctive visual appearance. Produced through controlled sheet-metal stamping, these components feature an organized arrangement of holes, dimples, or raised dots across the base surface. The pattern can be designed for decorative purposes, airflow management, light diffusion, weight reduction, filtration, sound transmission, or structural reinforcement, depending on the application.

Although the pattern may appear simple, producing a reliable polka dot base requires careful coordination between product design, tooling, material selection, press control, dimensional inspection, and surface treatment. Small changes in dot diameter, spacing, depth, edge condition, or sheet thickness can affect the performance and appearance of the finished component. For this reason, buyers need more than a visually attractive part. They need a manufacturing partner capable of converting a concept into repeatable, cost-effective, and dimensionally consistent production.

Yuyao Hongli Optoelectronics Co., Ltd. manufactures custom stamped parts for a wide range of industries and applications. With more than 20 years of industry experience, a 5,000-square-meter modern factory, multiple stamping workshops, and a workforce of more than 60 employees, the company supports the production of stamped parts, deep-drawn parts, bending parts, kitchen appliance accessories, automotive stamping parts, and related hardware components.

The company’s stamped parts with a polka dot pattern base are suitable for decorative panels, speaker grilles, vent covers, filters, appliance components, optical instrument assemblies, automotive trim, and other products requiring a combination of precision, appearance, and functional surface design. Through OEM and ODM services, customers can specify the material, dimensions, thickness, aperture, dot arrangement, surface treatment, packaging, and other requirements.

Stamped parts with a polka dot pattern base

Understanding the Polka Dot Pattern Base

A polka dot pattern base is a sheet-metal surface containing repeated circular or near-circular features. Depending on the tooling design, each feature may be a through-hole, a shallow indentation, a raised bump, or a formed opening with a defined edge profile. The features may be arranged in a straight grid, staggered rows, concentric circles, custom geometric layouts, or a pattern developed specifically for a customer’s product.

Through-holes are commonly selected when airflow, sound transmission, drainage, filtration, or light passage is required. Raised or recessed dots may be preferred when the product requires a solid base with visual texture, local reinforcement, anti-slip properties, or controlled light scattering. The manufacturing method can be adapted to the required function rather than being limited to one standard appearance.

The distance between individual dots is known as the pitch. The ratio between the open area and the total surface area is another important design factor. A higher open-area percentage can improve airflow or sound transmission, but it may reduce the remaining material available for strength. A lower open-area percentage may provide greater surface continuity and rigidity while producing a more subtle visual effect.

Dot diameter, pitch, sheet thickness, edge quality, and pattern alignment must be considered together. For example, a very small dot formed in thick material may require a different punch geometry and press setting than a larger opening in thin aluminum sheet. Likewise, a tightly spaced pattern may require additional support in the die to avoid distortion between neighboring features.

For customers, this means that the pattern should be considered an engineered feature rather than a purely decorative detail. The best results come from evaluating the visual target, mechanical requirements, airflow or acoustic needs, installation method, material behavior, and expected production volume at the beginning of the project.

Key Product Advantages

Distinctive Appearance

The evenly distributed dot pattern provides a clean and modern appearance. Compared with plain sheet-metal panels, a patterned base can add visual interest without requiring complex assembly or secondary decorative components. It can be incorporated into visible product areas such as appliance panels, speaker covers, lighting housings, display equipment, and automotive interior or exterior trim.

The pattern can also be combined with polishing, anodizing, coating, or other finishing processes. These treatments can emphasize the contrast between the formed features and the surrounding surface, improve resistance to environmental exposure, and help the part match the appearance of the finished product.

Improved Airflow and Ventilation

When the dots are formed as openings, the patterned base can provide a controlled passage for air. This makes the product suitable for vent covers, cooling panels, heater components, electrical enclosures, small household appliances, and other assemblies that require ventilation.

Compared with an irregularly perforated surface, a regular pattern can provide more predictable open-area distribution. Designers can adjust the diameter and spacing of the openings to balance airflow, protection, appearance, and structural strength. The regular layout may also support a more consistent pressure or flow distribution across the panel, although final performance should be verified under the actual operating conditions.

Weight Reduction

Removing a controlled amount of material from a sheet can reduce component weight while retaining a practical level of rigidity. This may be valuable in automotive parts, portable equipment, household appliances, optical instruments, and other products where lower mass can simplify handling, installation, or transportation.

Weight reduction should not be treated as a simple matter of creating as many openings as possible. The remaining web between dots must be strong enough to resist bending, vibration, impact, and assembly loads. Tooling and pattern design can be optimized to maintain the required stiffness while reducing unnecessary material.

Light Scattering and Visual Diffusion

A patterned surface can alter the way light passes through or reflects from a component. Small openings, formed dimples, and controlled spacing can help create a softer or more distributed visual effect. This is useful in lighting covers, optical instruments, display equipment, decorative panels, and indicator assemblies.

The final optical effect depends on material reflectivity, surface finish, dot geometry, light source position, and the surrounding assembly. For this reason, prototype samples are valuable when the appearance of transmitted or reflected light is an important product requirement.

Stable Dimensional Performance

Precision stamping makes it possible to produce repeated features with consistent dimensions across production batches. The supplied product information identifies typical tolerances of approximately ±0.1 mm, although the achievable tolerance for a specific feature depends on material, thickness, geometry, tooling, and inspection method.

Stable dimensions help the component fit with neighboring parts and reduce adjustment during assembly. This is particularly important for grilles, covers, brackets, inserts, and appliance accessories that must align with housings or fastening points.

Flexible Customization

Customers can request different part sizes, sheet thicknesses, apertures, pattern densities, dot arrangements, and surface treatments. A finer pattern may create a more refined decorative effect or control the passage of smaller particles. A coarser pattern may provide greater open area and stronger visual contrast. The appropriate choice depends on the intended use.

Customization also extends to the outside profile. The polka dot area can be located across the complete base or limited to a defined region. The part may include mounting holes, flanges, bends, stepped edges, drawn sections, or other stamped features. Integrating these characteristics into one component can reduce the number of separate parts and simplify assembly.

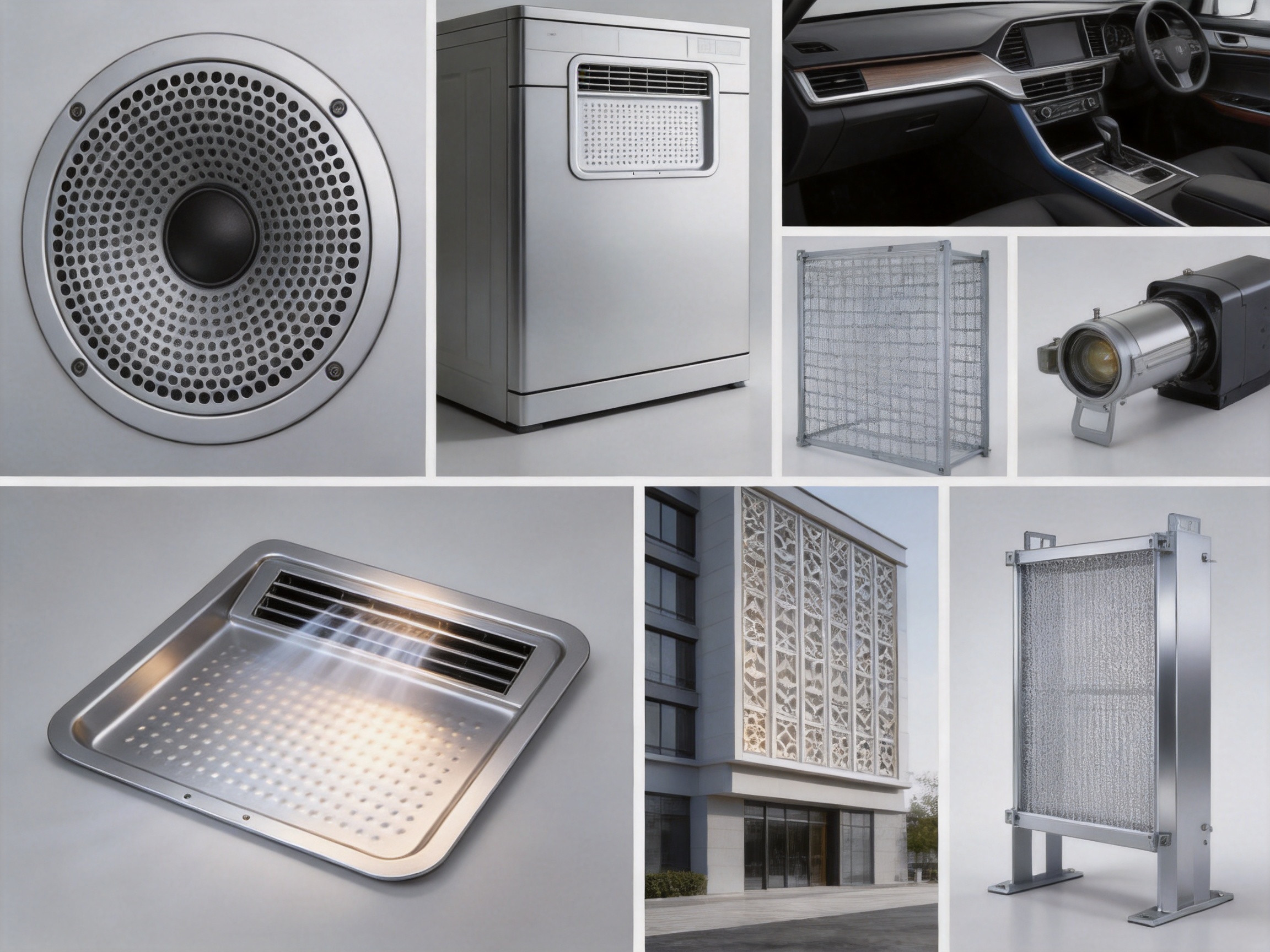

Applications Across Different Industries

Decorative Panels

Patterned stamped panels are used in interior and exterior decorative applications where a plain metal surface would appear unfinished or visually uninteresting. The dot arrangement can create a contemporary appearance while retaining the durability of metal. Depending on the material and finish, these panels may be used in furniture, equipment housings, retail fixtures, architectural details, and product enclosures.

A stamped panel can be designed with a surrounding border or mounting flange so that it fits directly into the final assembly. This eliminates the need for additional frames in some designs and helps create a clean finished edge.

Speaker Grilles

Speaker grilles require a balance between acoustic openness, mechanical protection, appearance, and manufacturability. A polka dot pattern can provide a regular distribution of openings that protects internal components while permitting sound to pass through.

Pattern geometry should be selected according to the speaker size, expected sound output, desired open area, and visual requirements. The stamped part may also be formed with a curved or recessed profile to improve rigidity and match the shape of the speaker enclosure. Surface treatments can help the grille coordinate with the product’s exterior finish.

Vent Covers and Appliance Components

Household appliances and small electrical products often require openings for heat dissipation or air circulation. A patterned stamped cover can provide ventilation while helping prevent accidental contact with internal components. The part may be combined with bent edges, mounting tabs, or reinforcement ribs for easier installation.

Yuyao Hongli Optoelectronics serves customers connected with household electric heaters, small household appliances, kitchen appliance accessories, and related products. This experience supports the development of practical sheet-metal components for equipment exposed to heat, repeated handling, and daily use.

Filters and Protective Screens

Patterned sheet metal may be used as a support screen, coarse filter, protective cover, or pre-filter element. The required performance depends on the opening size, thickness, material, and operating environment. The regular pattern can help provide consistent coverage across the working area.

For filtration applications, the stamped component is generally one part of a larger system. Buyers should define the required particle retention, pressure drop, cleaning method, corrosion resistance, and contact conditions before finalizing the pattern. A sample evaluation can confirm whether the selected opening geometry meets the actual application requirement.

Automotive Stamping Parts

Automotive products often require lightweight, repeatable, and visually consistent metal components. Polka dot pattern bases can be used in trim, ventilation areas, protective screens, brackets, covers, and other non-structural or semi-structural applications.

Automotive environments can expose parts to vibration, temperature variation, moisture, road contaminants, and handling during assembly. As a result, material selection, edge condition, corrosion resistance, and dimensional stability must be evaluated together. A suitable coating or anodized finish may be selected when additional environmental protection is needed.

Optical and Educational Instruments

Optical instruments and educational equipment may use stamped panels, protective screens, apertures, and covers that require both accurate dimensions and a clean appearance. Patterned surfaces can be used to manage light, protect internal components, provide ventilation, or reduce the visual weight of an enclosure.

Because Yuyao Hongli Optoelectronics developed from a company associated with educational instruments and now provides products for optical instruments and related equipment, its manufacturing capabilities are applicable to components that require careful appearance control and reliable integration.

Materials and Surface Treatment Options

Material selection influences the appearance, strength, forming behavior, corrosion resistance, weight, and cost of the finished stamped part. The material should be chosen according to the part’s operating environment and manufacturing geometry rather than selected solely on price.

Common sheet-metal options may include carbon steel, stainless steel, aluminum, copper alloys, and other materials appropriate for stamping. The actual material grade should be agreed upon during technical review. Each material behaves differently during punching, forming, bending, and drawing, so tooling clearance and process settings must be adapted accordingly.

Steel

Steel can provide good strength and stiffness for covers, brackets, appliance parts, and protective panels. It may be supplied with a coating or receive a post-stamping finish to improve corrosion resistance. Steel is often suitable when rigidity and cost control are important.

Stainless Steel

Stainless steel may be selected for applications requiring improved corrosion resistance, a durable appearance, or exposure to moisture. It can be used in kitchen appliance accessories, decorative components, protective screens, and equipment housings. Because stainless steel can work-harden during forming, tooling design and process control are especially important.

Aluminum

Aluminum is lightweight and can provide a favorable strength-to-weight ratio. It is often considered for appliance panels, optical equipment, automotive components, and decorative parts. Anodizing can enhance surface appearance and provide an additional protective layer, while polishing can create a bright and refined finish.

Surface Finishes

Polishing may be used to improve smoothness and reflectivity. Anodizing is often considered for aluminum components when color, surface hardness, and corrosion resistance are required. Coating can provide color, protection, or a specified visual effect. The selected treatment should be compatible with the material, forming condition, intended environment, and customer appearance requirements.

Surface treatment can also help distinguish the patterned features. For example, a consistent finish across the part can create a uniform appearance, while controlled contrast may emphasize the dots and make the pattern more visible. Samples should be reviewed before large-scale production when appearance is a major purchasing criterion.

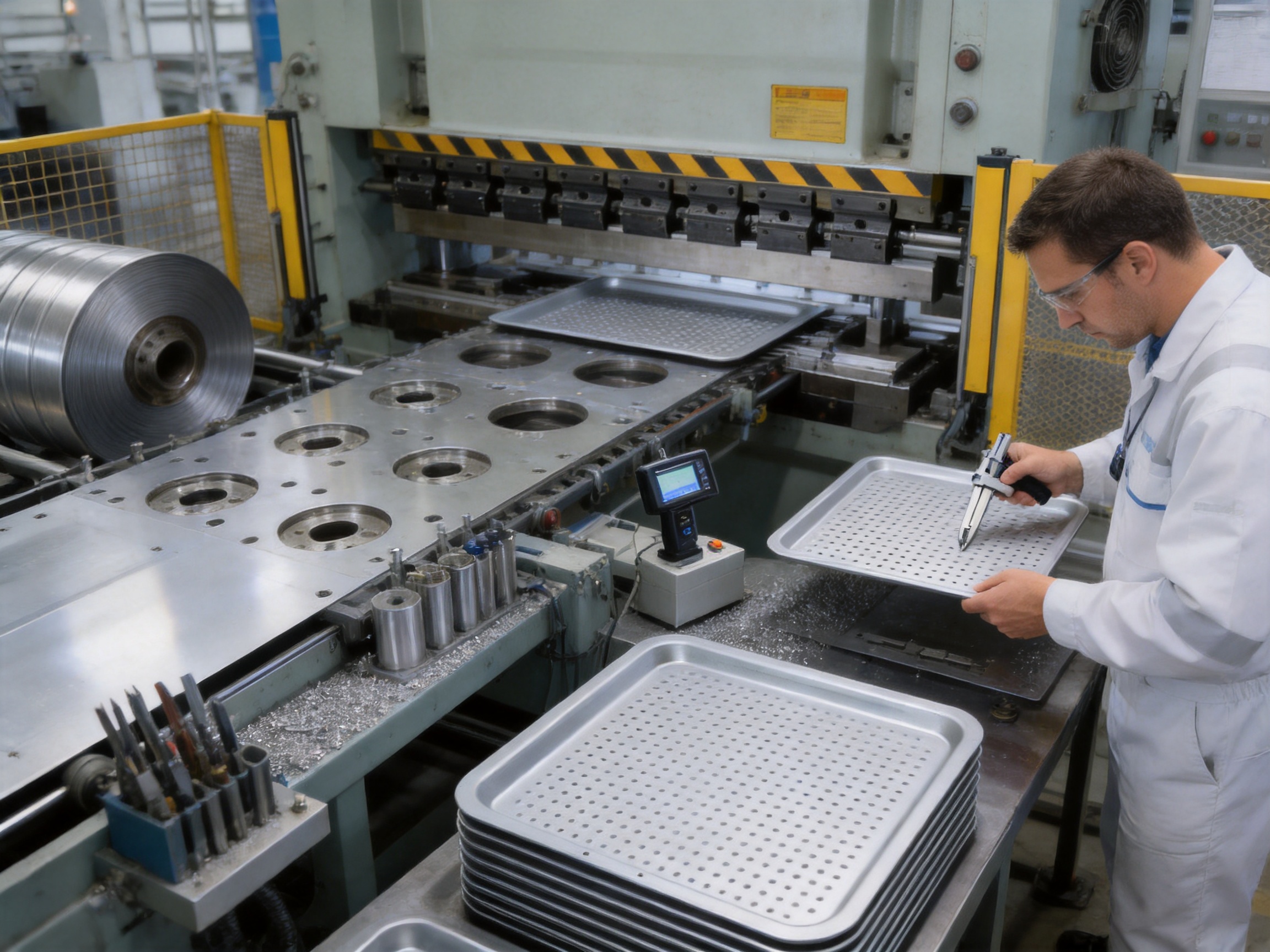

Advanced Manufacturing Process

1. Product Requirement Review

The production process begins with a review of the customer’s drawings, samples, specifications, and application requirements. Important information includes part length and width, material grade, sheet thickness, dot diameter, pitch, opening type, pattern area, bend locations, tolerances, surface treatment, annual quantity, and packaging expectations.

At this stage, the manufacturer can identify potential issues such as overly narrow webs, insufficient edge distance, difficult bend locations, excessive forming depth, or tolerance combinations that may be unnecessarily expensive. Early technical communication reduces the chance of tooling changes after production begins.

2. Design for Stamping

Design for stamping considers how the sheet will enter the die, how the material will be supported, how the dot pattern will be formed, and how the finished part will be removed. A design that looks acceptable in a computer drawing may still require adjustment if the material cannot flow correctly or if the tool cannot maintain adequate clearance.

The pattern should be positioned with consideration for the part edge, bends, mounting holes, and other formed features. Maintaining a suitable border can improve edge strength and reduce deformation. If the design requires a pattern close to a bend or flange, the sequence may need to be divided into multiple operations.

3. Tooling and Die Development

Stamping dies determine the accuracy, repeatability, and service life of the production process. Punches and cavities must be designed for the selected material and thickness. Clearance between the cutting elements affects edge quality, burr formation, tool wear, and forming force.

For a polka dot pattern, the tooling may include a series of punches and corresponding die openings for through-holes, or forming elements for dimples and raised dots. The arrangement must be carefully aligned so that all features are placed consistently. Where the pattern is dense, the die must provide sufficient support to prevent distortion of the surrounding sheet.

Tooling may be designed for a single operation or a sequence of operations. Progressive dies can perform multiple steps as the strip advances through the press, while other components may be manufactured using individual dies for blanking, piercing, bending, forming, and finishing. The best approach depends on part complexity, volume, material, and dimensional requirements.

4. Material Preparation

Before stamping, sheet or coil material is prepared to the required width, length, and feed condition. Material identification and handling are important for maintaining consistent performance. Variations in thickness, hardness, surface condition, or flatness can affect the quality of the patterned base.

Clean material helps reduce surface defects and minimizes the risk of marks being transferred during stamping. Proper storage and handling also help protect the sheet from moisture, contamination, and unnecessary scratching before it enters production.

5. Blanking and Piercing

Blanking creates the overall outline of the part, while piercing produces openings such as the dots, mounting holes, or slots. Depending on the design, blanking and piercing may occur in the same tool or in separate operations.

During piercing, the punch enters the sheet and removes a controlled section of material. The quality of the resulting opening depends on punch sharpness, die clearance, press alignment, material condition, and operating speed. Properly maintained tooling helps produce clean edges and consistent aperture dimensions.

6. Forming and Bending

If the polka dot features are raised or recessed rather than fully open, the forming operation shapes the material without removing it. The forming depth and radius must be controlled to avoid cracking, excessive thinning, or unwanted distortion.

Additional bending operations can create flanges, mounting edges, stiffening sections, or enclosure profiles. The sequence of stamping and bending is important. In some cases, the dot pattern should be produced before bending to ensure tool access and alignment. In other cases, forming the part first may be necessary to support a particular feature.

7. Deburring and Edge Control

Cutting operations can leave a small burr on the exit side of an opening. The acceptable burr level depends on the application, handling requirements, and assembly method. Deburring may be completed through mechanical, vibratory, brushing, or other suitable processes.

Edge control is particularly important for speaker grilles, appliance covers, filters, and parts that may be handled during assembly. Smooth edges can reduce the risk of injury, protect adjacent components, and improve the perceived quality of the product.

8. Cleaning and Surface Treatment

After stamping and deburring, parts may be cleaned to remove oil, particles, and processing residue. The cleaning method depends on the material and subsequent finishing process. Components may then receive polishing, anodizing, coating, or another treatment specified by the customer.

Surface treatment should be applied consistently across the patterned area. Uneven coverage can make dot size or spacing appear inconsistent even when the underlying stamping is accurate. Inspection of color, gloss, adhesion, and surface uniformity may be included when these characteristics are part of the product specification.

9. Inspection and Packaging

Inspection may include dimensional checks, visual examination, aperture verification, edge inspection, coating assessment, and fit testing. Critical dimensions such as overall size, dot diameter, pitch, thickness, flatness, bend angle, and mounting-hole location should be identified before production.

Packaging is also important. Patterned parts can be vulnerable to scratching, bending, or surface contact marks if stacked without suitable protection. Packaging methods can be adapted to the part shape, finish, shipping distance, and customer assembly process.

Quality Control and Dimensional Consistency

Reliable production depends on controlling the process rather than relying solely on final inspection. Press settings, material condition, tooling wear, lubrication, feed accuracy, and operator procedures can all influence the finished product. A stable manufacturing system helps reduce variation and supports repeatable batch quality.

The typical tolerance referenced for these stamped components is approximately ±0.1 mm. This figure should be treated as a general production capability reference rather than a universal tolerance for every feature. Very small apertures, narrow webs, complex formed shapes, or unusually thin materials may require a technical review to confirm the appropriate tolerance.

Visual inspection can identify scratches, dents, incomplete openings, deformation, discoloration, burrs, and coating defects. Dimensional inspection verifies whether the parts meet the drawing requirements. Depending on the product, inspection tools may include calipers, micrometers, gauges, templates, optical measurement equipment, or custom fixtures.

For parts installed into assemblies, functional checking can be as important as dimensional measurement. A sample may be checked for fit, airflow, sound transmission, mounting stability, or appearance under the intended lighting conditions. These checks help ensure that the stamped component performs correctly after installation, not just when measured separately.

Product characteristic	Why it matters	Typical control approach
Overall length and width	Ensures the part fits the housing or assembly	Drawing review, gauges, calipers, or coordinate measurement
Dot diameter or aperture size	Influences appearance, airflow, sound transmission, and filtration	Optical measurement, plug gauges, or dimensional inspection
Dot pitch and pattern alignment	Maintains visual uniformity and functional distribution	Templates, optical inspection, or programmed measurement
Sheet thickness	Affects strength, weight, forming behavior, and fit	Material certification and thickness measurement
Flatness and forming depth	Prevents assembly interference and unwanted distortion	Surface plate, fixtures, or profile gauges
Burr and edge condition	Protects users and adjacent components	Visual inspection and specified edge criteria
Surface finish	Determines appearance and environmental protection	Visual comparison and finish-specific testing

Advantages Compared with Alternative Manufacturing Approaches

Compared with Plain Sheet Panels

A plain sheet panel may be simple to manufacture, but it does not provide the same airflow, light passage, acoustic openness, or visual texture as a polka dot pattern base. Adding a controlled pattern can increase the usefulness of the part without requiring a separate mesh or grille insert.

A patterned stamped panel can also be designed with integrated mounting features. This may reduce assembly steps compared with attaching a separate decorative screen to a plain cover. The result can be a more compact component with fewer interfaces that may loosen or rattle over time.

Compared with Expanded Metal

Expanded metal is created by slitting and stretching sheet material, producing a repeating diamond or other elongated opening. It is useful for many applications, but its appearance and directional geometry may not suit products requiring circular openings or a softer visual pattern. Stamped dots offer greater control over aperture shape, spacing, and localized pattern placement.

Stamped parts may also provide a more suitable platform for precise mounting holes, flanges, bends, and formed details. The choice between expanded metal and stamped perforation should be based on airflow, strength, appearance, cost, and the required product geometry.

Compared with Wire Mesh

Wire mesh can provide fine filtration or protection, but it usually requires a frame or additional method of attachment. A stamped polka dot panel can integrate the pattern into the metal base and may offer higher resistance to certain types of handling or localized impact.

Wire mesh and stamped panels have different open-area characteristics, edge conditions, and cleaning behavior. A stamped component may be preferable when the customer needs a rigid, formable, easily mounted cover with a controlled appearance.

Compared with Laser Cutting

Laser cutting is flexible and useful for prototypes, low-volume production, and complex patterns. However, for repeated circular features in medium or high quantities, dedicated stamping tools can provide efficient cycle times and consistent repetition. Once the tooling is established, stamping may offer a favorable unit cost and reliable production rhythm.

Laser cutting may still be appropriate when the pattern changes frequently or when the quantity is too low to justify dedicated tooling. A manufacturer experienced in stamping can help evaluate the most practical process based on volume, tolerances, material, and development schedule.

Compared with Machining

Machining can produce precise features but may remove more material, require longer cycle times, and generate higher costs for thin-sheet repetitive patterns. Stamping is generally more suitable for producing repeated openings or formed dots across a sheet, particularly when the component is part of a larger production program.

The appropriate choice depends on the required accuracy, material, quantity, geometry, and surface condition. Stamping is especially advantageous when the customer wants a repeatable pattern combined with bends, flanges, or other sheet-metal features.

Customization and OEM/ODM Support

Customized stamped parts are most successful when the customer and manufacturer define the requirements in detail. A drawing should show the pattern dimensions, reference datums, tolerance requirements, material, thickness, surface finish, and any critical functional zones. If the product is still in development, a physical sample, sketch, or application description can help initiate the technical discussion.

OEM projects may require production according to a customer-owned design. ODM projects may involve support with pattern selection, component layout, material recommendations, and manufacturing optimization. The company supports both approaches, allowing customers to purchase a specified component or develop a practical design through engineering communication.

Rapid prototyping can be used to evaluate the appearance, fit, pattern density, and surface treatment before committing to larger production quantities. Prototypes may also reveal whether the selected thickness provides sufficient rigidity or whether the open area needs adjustment.

When the component is part of an appliance, automotive product, optical instrument, or household device, it is useful to review the complete assembly rather than the stamped part alone. This can identify interactions with seals, fasteners, airflow paths, wiring, speakers, filters, heating elements, and neighboring covers.

Production Capacity and Company Strengths

Yuyao Hongli Optoelectronics Co., Ltd. has more than 20 years of experience in manufacturing and processing metal components. Founded in 2000, the company developed from its former name, Yuyao Hongli Optoelectronics Educational Instruments Co., Ltd., into a comprehensive manufacturing enterprise serving multiple product categories.

The company operates a 5,000-square-meter modern factory with multiple stamping workshops and more than 60 employees. This combination of facility space, equipment resources, and experienced personnel supports production ranging from customized prototypes to repeat orders and larger manufacturing programs.

Its product and service scope includes educational instruments, optical instruments, household electric heaters, small household appliances, automotive parts, hardware products, plastic products, deep-drawn parts, stamped parts, bending parts, kitchen appliance accessories, and automotive stamping parts. This range is valuable because many customers require more than one type of component or need stamped parts integrated with bending, drawing, plastic, or assembly-related products.

The company provides manufacturing, processing, wholesale, retail, import, and export services. For international buyers, this broad service model can simplify communication and procurement by allowing product development, production, finishing, and delivery coordination through one supplier.

Quality control, stable delivery, and after-sales service are identified as important parts of the company’s operating approach. Its business philosophy emphasizes integrity, excellence, innovation, and sharing, with a focus on long-term cooperation and customized solutions.

How to Specify a Polka Dot Stamped Part

A clear specification helps prevent misunderstandings and reduces development time. Customers should provide the following information whenever possible:

1. Part length, width, height, and overall profile.

2. Material grade and sheet thickness.

3. Dot type: through-hole, raised dot, recessed dot, or another formed feature.

4. Dot diameter, depth, pitch, row arrangement, and pattern direction.

5. Required open-area percentage, if applicable.

6. Pattern location and any unpatterned borders.

7. Bends, flanges, drawn sections, mounting holes, slots, and other features.

8. Dimensional tolerances and especially critical measurements.

9. Surface treatment, color, gloss, corrosion-resistance expectations, and appearance standards.

10. Expected order quantity, forecast, packaging requirements, and delivery schedule.

11. Functional requirements such as airflow, acoustic transmission, light diffusion, filtration, or heat dissipation.

12. Inspection standards, sample approval procedure, and documentation requirements.

When a customer does not yet have a complete drawing, photographs, sketches, sample parts, and application information can still be useful. A preliminary technical review can then determine which details must be finalized before tooling begins.

Design Considerations for Better Results

Maintain Sufficient Material Between Dots

The remaining material between neighboring features must be strong enough to resist tearing and deformation. If the dots are too close together, the sheet may become weak or difficult to process. A suitable web width should be evaluated in relation to material type, thickness, aperture size, and forming method.

Consider the Border

A solid border around the patterned area can improve handling, mounting, and stiffness. It can also provide space for fasteners or joining operations. If the pattern extends too close to the edge, the part may be more susceptible to edge deformation or breakout during stamping.

Define the Visual Direction

Even a symmetrical pattern can appear different when placed on a curved, bent, or reflective surface. Customers should specify whether the pattern needs to align with the part edges, follow a centerline, or maintain a particular orientation after forming.

Account for Springback

Sheet metal can recover slightly after bending or forming. The amount of springback depends on material properties, thickness, bend radius, and forming conditions. Tooling may need compensation to achieve the required final angle or profile.

Balance Open Area and Strength

More openings can improve airflow, light passage, or acoustic transmission, but may reduce rigidity and protection. A balanced design normally provides enough open area for the application while retaining a stable structure around the pattern.

Plan for Surface Treatment

Finishing processes may affect appearance, dimensions, and surface texture. If the part includes small openings or formed dots, the coating process should be evaluated to ensure that the features remain clear and functional. Appearance samples are recommended for products with demanding cosmetic requirements.

Environmental and Service Considerations

The operating environment should guide material and finish selection. Indoor decorative parts may require primarily visual consistency and clean edges, while automotive or kitchen equipment components may encounter moisture, heat, cleaning agents, vibration, or fingerprints.

For parts exposed to humidity or corrosive substances, stainless steel, aluminum with suitable anodizing, coated steel, or another appropriate material may be considered. The final choice should reflect the actual exposure conditions rather than a general assumption about corrosion resistance.

Thermal applications require attention to material expansion, coating behavior, and the distance between the stamped component and heat sources. Ventilation parts should be evaluated for airflow and temperature under operating conditions. If the component acts as a protective screen, its opening size and edge condition should be checked for the relevant safety requirements.

Cleaning and maintenance may also influence the pattern. Larger, smoother openings can be easier to clean, while very fine patterns may retain dust or residue. The part’s geometry should therefore match the expected maintenance procedure.

Q&A

What are stamped parts with a polka dot pattern base?

They are sheet-metal components containing repeated circular or similar features across the base. The features may be through-holes, raised dots, or recessed dots. They can provide decoration, airflow, light diffusion, sound transmission, weight reduction, filtration support, or surface reinforcement.

Can the dot size and spacing be customized?

Yes. Customers can request different dot diameters, pitches, pattern densities, layouts, and patterned areas. The practical limits depend on the material, thickness, tooling, tolerances, and intended function.

Are the dots always open holes?

No. The pattern can be produced as open apertures or as formed bumps and indentations. The correct style depends on whether the application requires air, light, or sound to pass through the part.

What materials can be used?

Suitable materials may include steel, stainless steel, aluminum, copper alloys, and other sheet metals appropriate for the application. The final material should be selected according to strength, corrosion resistance, weight, forming behavior, appearance, and cost requirements.

What tolerance can be achieved?

The supplied product information identifies typical tolerances of approximately ±0.1 mm. The actual tolerance should be confirmed for each drawing and feature because material, thickness, aperture size, tooling, forming depth, and inspection method can affect the result.

Can the part include bends or mounting features?

Yes. The patterned base can be combined with bends, flanges, mounting holes, slots, drawn sections, and other stamped or formed features. Integrating these features can reduce assembly complexity and the number of separate components.

Which surface treatments are available?

Available options include polishing, anodizing, and coating, subject to material compatibility and customer requirements. The selected finish can improve appearance, corrosion resistance, surface durability, or color coordination with the final product.

What industries use these components?

Applications include decorative panels, speaker grilles, vent covers, filters, optical instruments, educational equipment, household appliances, kitchen appliance accessories, automotive components, and protective screens.

Can prototypes be produced before mass production?

Prototype development and rapid production conversion are supported. Prototype samples allow customers to evaluate fit, pattern appearance, rigidity, open area, and surface treatment before placing a larger production order.

How should a customer begin a project?

The customer should provide a drawing, sample, sketch, or application description together with material, dimensions, pattern requirements, quantity, finish, and tolerance information. A technical review can then determine the appropriate stamping process and tooling approach.

What makes a stamped polka dot panel better than a separate grille?

A stamped panel can integrate the pattern, mounting edges, bends, and other features into one component. This may reduce assembly steps, provide a more unified appearance, and simplify procurement. The best choice still depends on the required airflow, acoustic performance, strength, cost, and production volume.

Conclusion

Stamped parts with a polka dot pattern base provide a practical way to combine visual design with engineered performance. Their repeated holes, dimples, or raised features can support airflow, sound transmission, light diffusion, filtration, weight reduction, protection, and decorative appeal. Through careful control of material, aperture size, pitch, pattern location, thickness, and forming conditions, the component can be adapted to a wide variety of products.

The main advantages over plain panels, wire mesh, expanded metal, laser-cut parts, or machined components include pattern flexibility, integrated sheet-metal features, repeatable production, efficient high-volume manufacturing, and the ability to combine functional openings with bends, flanges, and mounting details. These benefits are most valuable when the design is reviewed with manufacturing requirements in mind from the beginning.

Yuyao Hongli Optoelectronics Co., Ltd. offers more than two decades of manufacturing experience, a 5,000-square-meter facility, multiple stamping workshops, more than 60 employees, OEM and ODM support, rapid prototyping, surface treatment options, and experience across appliances, automotive products, optical instruments, educational equipment, hardware, deep-drawn parts, and bending parts.

For customers seeking a dependable custom component, the best production program begins with a clear specification and a collaborative technical review. By defining the pattern, material, tolerance, finish, application, and quantity, buyers can obtain a stamped part that is not only attractive but also consistent, functional, and ready for reliable integration into the finished product.

References

1. Society of Manufacturing Engineers, Sheet Metal Stamping and Forming Process Principles.

2. American Society for Metals, ASM Handbook: Forming and Forging.

3. American Society for Testing and Materials, General Practices for Dimensional Inspection of Manufactured Components.

4. International Organization for Standardization, Quality Management Principles for Manufacturing Operations.

5. Metalforming Industry Association, Design Considerations for Punching, Piercing, and Bending Sheet Metal.

6. Manufacturing Engineering Reference Guides, Fundamentals of Progressive Die and Press Tool Design.

7. Materials and Finishing Engineering References, Principles of Anodizing, Polishing, and Protective Coating Selection.

Product: Stamped parts with a polka dot pattern base
