Deep-Drawn Square Containers with One-Sided Cutouts: Precision, Functionality, and Custom Manufacturing

Deep-drawn square containers with one-sided cutouts are specialized sheet metal components designed for applications that require strength, dimensional consistency, clean geometry, and convenient access. By combining the structural efficiency of deep drawing with the practical benefits of a precisely positioned side opening, this product offers a versatile solution for industrial equipment, food-processing systems, medical devices, household appliances, optical instruments, automotive assemblies, and customized hardware.

Unlike conventional fabricated boxes assembled from several individual panels, a deep-drawn square container can be formed from a single sheet of metal through a controlled stamping and forming process. This greatly reduces the number of seams, joints, and welding points. The result is a strong, clean, and reliable component with a smooth surface and a reduced risk of leakage, contamination, distortion, or mechanical failure.

The one-sided cutout adds another level of functionality. It enables direct access to the interior, provides space for an adjoining component, accommodates cables or fittings, and allows the container to be integrated into a larger assembly. Since the opening can be customized in location, size, and shape, the component can be adapted to specific installation and operating requirements rather than forcing a system designer to compromise around a standard enclosure.

Modern production of this type of component requires more than a basic stamping press. It involves material selection, tool engineering, blank preparation, lubrication, multi-stage forming, trimming, piercing, dimensional inspection, surface treatment, and packaging. A capable manufacturer must also understand the relationship between material behavior, draw depth, corner radius, wall thickness, springback, cutout position, and final assembly requirements.

Yuyao Hongli Optoelectronics Co., Ltd. provides custom manufacturing for deep-drawn parts, stamped parts, bending parts, kitchen appliance accessories, and automotive stamping parts. With more than 20 years of industry experience, a 5,000-square-meter factory, multiple stamping workshops, and a workforce of more than 60 employees, the company supports OEM and ODM projects from early design communication through production and delivery.

This article examines the construction, advantages, manufacturing process, customization options, applications, quality considerations, and purchasing factors associated with deep-drawn square containers with one-sided cutouts.

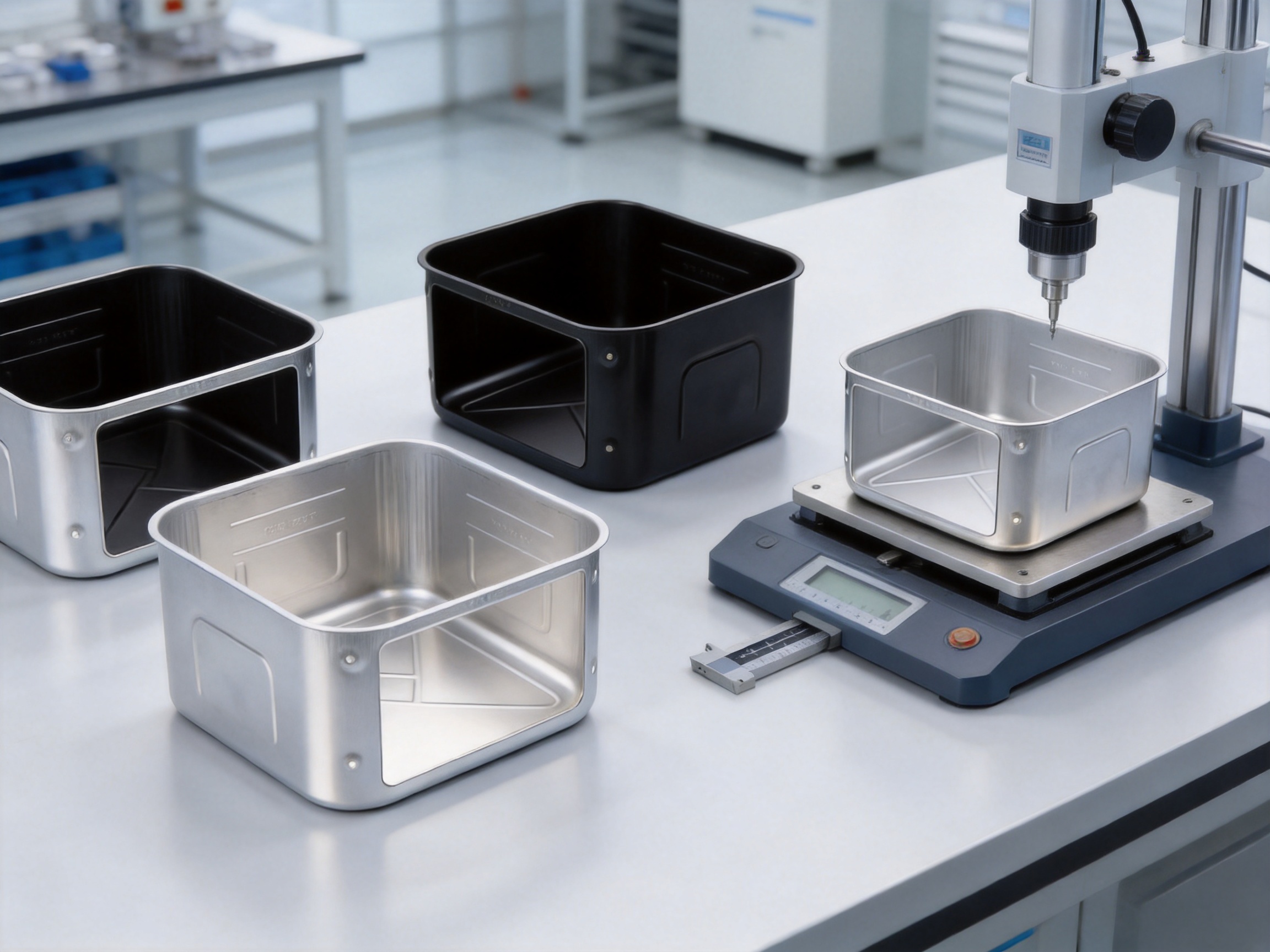

Deep-drawn square shape with one side cut out

1. Product Overview

A deep-drawn square container with one-sided cutout is a formed sheet metal body with a generally square or rectangular profile and an opening removed from one side. The container may have a closed bottom and several continuous walls, while the cutout interrupts one wall to provide access or clearance. Depending on the design, the opening may be produced during the forming sequence or created afterward through trimming, punching, milling, laser cutting, or another precision cutting method.

The fundamental body is produced by forcing a flat metal blank into a shaped die with a punch. During this operation, the blank flows into the die cavity and develops vertical or slightly tapered walls. With appropriate tooling and process control, the container can be formed with consistent corners, uniform wall geometry, and a smooth transition between the bottom and side walls.

Although the product may appear simple, square deep drawing is technically demanding. Round shapes distribute forming forces relatively evenly around the perimeter. Square shapes create more challenging conditions at the corners, where material flow, stretching, compression, and wrinkling must be carefully controlled. The tool design must therefore account for corner radii, blank-holder pressure, draw ratio, lubrication, and the selected material grade.

The one-sided cutout further increases the design requirements. The opening must be positioned accurately, and its edges must remain sufficiently strong for handling and assembly. If the cutout is produced too close to a corner or bottom radius, it may weaken the part or create local distortion. If the opening is created before forming, its shape may change during drawing. If it is created after forming, the cutting method must avoid burrs, cracking, and damage to the surrounding surface.

For these reasons, a product drawing or three-dimensional model should specify not only the overall length, width, and height, but also the material, thickness, internal corner radius, external corner radius, cutout dimensions, cutout location, edge condition, flatness, surface finish, and acceptable tolerances.

2. Main Structural Features

2.1 Integrated Construction

The most important feature of a deep-drawn container is its integrated construction. Instead of joining separate plates at the corners, the component is formed from one sheet. This minimizes weld seams and reduces the number of potential weak points. An integrated body is especially valuable when the part will be exposed to vibration, cleaning, repeated handling, elevated temperatures, or corrosive environments.

A one-piece structure can also simplify downstream assembly. Fewer welded joints mean fewer areas that require grinding, sealing, inspection, or additional finishing. The consistent geometry created by the die supports repeatable placement within a larger product.

2.2 Square or Rectangular Profile

The square profile provides efficient use of space. Compared with a cylindrical container, a square container can be installed against flat panels, into rectangular housings, or alongside other components with less unused space. This makes the design suitable for compact equipment and assemblies where every millimeter of internal volume matters.

The four-sided geometry also offers convenient reference surfaces for brackets, covers, guide rails, mounting plates, and other parts. Depending on the design, the external walls can be used as supporting surfaces or can receive additional holes, flanges, ribs, tabs, or fastening features.

2.3 One-Sided Cutout

The side cutout is the defining functional feature. It may be used as an access opening, clearance area, inspection window, ventilation path, cable passage, material transfer opening, or interface for another component. The cutout can be rectangular, square, semicircular, stepped, slotted, or otherwise shaped according to the application.

Cutout dimensions must be considered together with the expected loads. A large opening may improve accessibility but reduce wall stiffness. A narrow opening may preserve strength but restrict access. The design can be optimized by adding a surrounding flange, rolled edge, reinforcing bead, folded return, or separate frame when additional rigidity or user protection is required.

2.4 Smooth Formed Surface

Deep drawing can produce a continuous surface with a clean appearance and reduced roughness compared with heavily welded or manually fabricated structures. Surface quality depends on the raw material, tooling finish, lubrication, forming speed, handling procedures, and post-processing.

For visible applications, the part may receive brushed, polished, or electropolished treatment. These finishes can improve appearance and may contribute to corrosion resistance, cleanability, and resistance to the accumulation of residues. The preferred treatment should be selected according to the metal grade and the actual operating environment.

2.5 Customizable Dimensions and Thicknesses

The product can be developed in a variety of sizes and material thicknesses. Dimensions are determined by the available installation space, required internal volume, forming limitations, structural loads, and target production quantity. The correct thickness is not always the greatest thickness. A well-designed geometry, appropriate corner radius, and reinforcing feature may provide the required strength without unnecessary material consumption.

Custom dimensions also allow the container to be matched to existing equipment. This is important when replacing a legacy part, adapting an imported machine, developing a new appliance, or consolidating several components into one manufactured body.

3. Advantages Compared with Conventional Fabricated Containers

3.1 Fewer Seams and Reduced Leakage Risk

Conventional square containers are often made by cutting several metal panels and joining them through welding, riveting, brazing, or adhesive bonding. Each joint introduces a possible source of leakage, contamination, corrosion, or dimensional variation. A deep-drawn construction significantly reduces the number of seams, especially around the bottom and corners.

This advantage is important in food-processing and medical equipment, where crevices can make cleaning more difficult. It is also useful in industrial applications where the component may hold, guide, shield, or surround materials that must remain protected from the external environment.

3.2 Improved Structural Continuity

Material continuity around the bottom and walls allows loads to flow through the component more evenly. A formed corner does not rely on a separate weld bead or fastener to maintain its shape. When the tooling and material are properly selected, the result is a robust part with good resistance to ordinary handling, vibration, and installation forces.

Structural performance still depends on the design. Deep drawing is not a substitute for engineering analysis, and special applications may require ribs, thicker material, flanges, or additional supports. However, the integrated form provides a strong starting point for these improvements.

3.3 Consistent Repeatability

Once the die, punch, blank-holder system, and process parameters have been validated, repeated production can achieve a high degree of consistency. Each part is formed through the same fundamental sequence, reducing the variation commonly associated with manual bending and assembly.

Consistency is particularly valuable when the container must fit into a housing, align with a cover, connect to another stamped component, or meet a controlled assembly tolerance. It also reduces the amount of adjustment required during final production.

3.4 Efficient High-Volume Production

Deep drawing is well suited to medium- and high-volume manufacturing after the tooling has been developed. Compared with producing each box through multiple cutting, bending, and welding operations, a dedicated forming process can shorten cycle time and reduce labor-intensive assembly.

The economic benefit depends on material, geometry, annual quantity, tooling investment, and the number of forming stages. For small quantities, prototype tooling or flexible cutting methods may be appropriate. For larger programs, dedicated progressive, transfer, or compound tooling may offer better unit cost and production stability.

3.5 Better Use of Interior Space

A deep-drawn container can offer a continuous internal cavity with fewer intruding weld beads or overlapping sheet edges. This creates more usable space and makes it easier to position internal components. The square profile also uses cabinet and equipment space efficiently, particularly where components must be arranged in rows or aligned against flat surfaces.

3.6 Improved Visual Quality

The smooth, continuous surface of a formed component can support a more refined finished product. When combined with brushing, polishing, or electropolishing, the container can meet the appearance requirements of household appliances, visible equipment, kitchen systems, and selected medical or laboratory products.

3.7 Easier Cleaning and Maintenance

Fewer joints and a continuous internal surface can reduce locations where dust, food residue, moisture, or process material may collect. This can support cleaning and routine maintenance. The actual cleanability depends on the final geometry, corner radii, surface finish, cutout edge design, and operating conditions, so these characteristics should be specified during product development.

4. Materials and Surface Treatments

Material selection is one of the first decisions in the development of a deep-drawn square container. The selected sheet must combine suitable formability with the required strength, corrosion resistance, temperature performance, appearance, and cost.

4.1 Stainless Steel

Stainless steel is commonly considered for food-processing equipment, kitchen appliance accessories, medical equipment, laboratory products, and environments where corrosion resistance and cleanability are important. Austenitic stainless steels generally offer good forming characteristics, although the specific grade and temper must be evaluated for the required draw depth and geometry.

Stainless steel can be supplied with a brushed or polished finish. Electropolishing may be selected where a smoother, cleaner, and more corrosion-resistant surface is required. The treatment must be compatible with the intended application and should be evaluated for dimensional effects around the cutout and edges.

4.2 Aluminum

Aluminum provides low weight and good corrosion resistance in many environments. It can be useful for equipment covers, housings, transport-related components, and applications where reducing mass is important. Aluminum alloys differ considerably in formability, strength, and surface behavior, so the alloy and temper should be chosen with the forming sequence in mind.

4.3 Mild Steel and Low-Carbon Steel

Low-carbon steel can provide good deep-drawing performance, structural strength, and cost efficiency. It may be used for industrial parts, brackets, internal housings, and components that will receive painting, plating, powder coating, or another protective treatment.

When corrosion protection is needed, the selected coating should cover the formed surfaces and cutout edges uniformly. The design should also consider whether the opening may expose the substrate to moisture or mechanical wear.

4.4 Coated or Plated Sheet

Pre-coated or plated sheet may be suitable for certain applications, although forming can affect the coating at corners and high-strain areas. The manufacturer must verify whether the coating can tolerate the drawing operation without cracking, peeling, or excessive marking.

4.5 Surface Finish Options

Brushed finishing creates a directional texture that can help reduce the visual impact of minor handling marks. Polishing produces a brighter and more reflective appearance. Electropolishing can improve surface smoothness and corrosion performance when correctly applied. Other treatments may include passivation, powder coating, plating, or protective film application.

The required surface finish should be described clearly using a recognized specification where possible. It is also helpful to identify whether the finish is required on the external surface, internal surface, cutout edge, or all exposed areas.

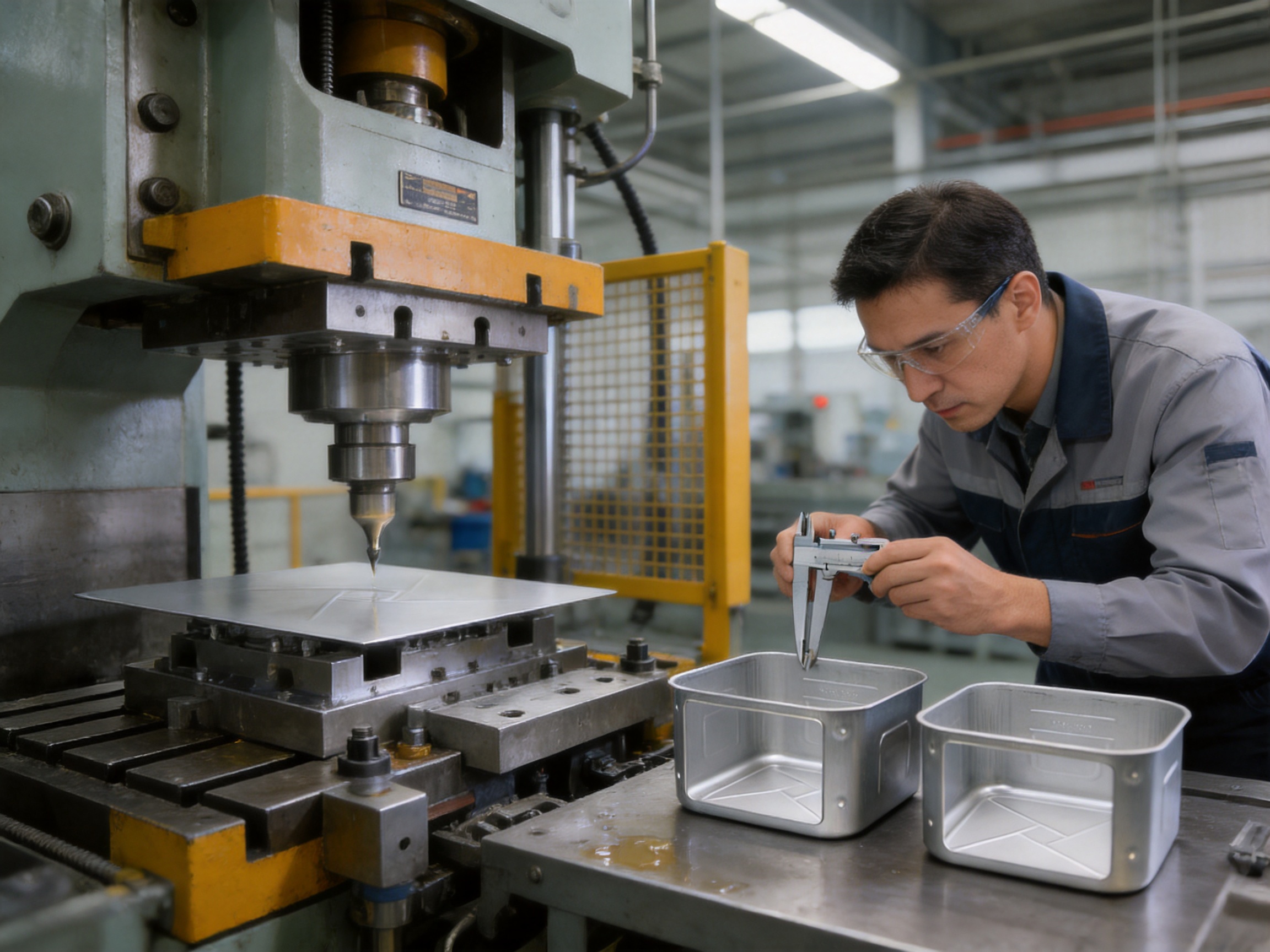

5. Manufacturing Process

The manufacturing process begins with technical communication and continues through inspection and delivery. Each stage influences the quality of the final deep-drawn container.

5.1 Design Review and Manufacturability Assessment

Before tooling begins, the drawing or three-dimensional model should be reviewed for deep-drawing feasibility. Important factors include the overall dimensions, draw depth, wall height, corner radii, material thickness, cutout geometry, flange requirements, and production volume.

Engineers evaluate whether the part can be produced in one draw or requires multiple stages. They also assess the risk of wrinkling, tearing, excessive thinning, surface marking, and springback. If the cutout is close to a corner, the team may recommend a larger radius, a modified opening shape, or an additional reinforcing feature.

5.2 Material Preparation

Sheet material is inspected before entering production. The inspection may cover thickness, surface condition, flatness, identification, and general conformity with the purchasing specification. Material traceability is useful for maintaining consistency between production batches and investigating any forming issue that may occur.

The sheet is then cut into blanks. Blank size and shape are important because they determine how material flows into the die. An oversized blank can increase waste and may contribute to wrinkling. An undersized blank may result in insufficient material, tearing, or incomplete formation.

5.3 Tool and Die Engineering

The forming die determines the external shape of the container, while the punch determines the internal profile. Tool surfaces must be accurately machined and properly finished to reduce friction and prevent unwanted marks. Corner radii are especially important in square deep drawing because sharp transitions increase stress concentration and restrict material flow.

The die may include a blank holder to control the sheet during forming. Excessive holding force can cause tearing, while insufficient force can allow wrinkles. In more complex designs, draw beads or other material-control features may be used to regulate flow in different areas of the blank.

5.4 First Drawing Operation

During the first drawing operation, the blank is positioned over the die and held in place. The punch moves into the die cavity, pulling the sheet around the punch and into the desired container shape. Lubrication is applied as appropriate to reduce friction and tool wear.

Press speed, blank-holder pressure, punch radius, die radius, and lubrication all influence the outcome. The process must be adjusted to avoid tearing at the corners, wrinkles near the walls, and excessive thinning in areas under high tensile stress.

5.5 Multiple Drawing Stages

When the required depth or shape exceeds the practical capability of one operation, multiple drawing stages may be used. Each stage gradually develops the final geometry and manages the strain imposed on the material. Intermediate annealing may be considered for certain materials or particularly demanding shapes.

A multi-stage process can improve reliability and surface quality, although it increases tooling and processing requirements. The most suitable sequence is determined through engineering analysis, trial production, and dimensional inspection.

5.6 Trimming and Calibration

After drawing, the upper edge may require trimming to achieve the specified height and edge profile. Calibration or restriking can improve dimensional accuracy, corner definition, and flatness. These operations are useful when the container must fit precisely within a larger assembly.

If a flange is required, it can be formed during a later operation. A flange may improve mounting, provide a sealing surface, increase stiffness, or create an interface for a cover.

5.7 Cutout Formation

The one-sided cutout can be created using several methods. Punching is efficient for repetitive production when the opening geometry is stable. Laser cutting provides flexibility for prototypes, low-volume orders, and complex contours. Milling or routing may be used for particular materials or dimensional requirements. A secondary stamping operation can also produce the opening when suitable tooling is available.

The timing of the cutout is selected according to the part geometry. Creating it after forming often provides better control over final position and shape. Creating it before forming may be suitable in special cases, but the design team must account for deformation during drawing.

5.8 Deburring and Edge Treatment

Cutout edges and trimmed edges must be checked for burrs, sharp projections, and rough areas. Deburring may be completed through mechanical, abrasive, vibratory, chemical, or manual methods, depending on the material and required finish.

Edge treatment is important for operator safety, cable protection, sealing performance, and downstream assembly. Where the opening is used frequently, a folded return or protective edge may be specified.

5.9 Surface Finishing

Following forming and cutting, the component may be cleaned and subjected to the selected surface treatment. Brushing, polishing, or electropolishing can be applied where appearance, corrosion resistance, or cleanability is important. The finish should be inspected under suitable lighting and compared with an approved sample or reference standard.

5.10 Final Inspection and Packaging

Final inspection may include dimensional measurement, visual examination, cutout verification, edge inspection, surface assessment, and functional fit testing. Depending on the customer’s requirements, inspection may use gauges, calipers, coordinate measurement equipment, optical systems, or dedicated checking fixtures.

Packaging must protect the surfaces and cutout during transport. Individual separators, protective films, custom trays, or moisture-resistant materials may be used according to the finish and shipping conditions.

6. Key Manufacturing Strengths

6.1 Experience in Deep-Drawing and Stamping

Deep-drawn parts require practical process knowledge in addition to general sheet metal capability. Yuyao Hongli Optoelectronics has more than 20 years of experience in metal stamping and related manufacturing. This background supports informed decisions concerning material flow, die design, forming sequence, trimming, bending, and secondary operations.

Experience across different product categories also helps the manufacturer recognize common production risks. A design that is acceptable for a simple bracket may not be suitable for a deep container with a large cutout. Experienced review can identify these differences before expensive tooling is completed.

6.2 Integrated Production Capability

The company operates a modern factory of approximately 5,000 square meters with multiple stamping workshops and more than 60 employees. Its product range includes deep-drawn parts, stamped parts, bending parts, kitchen appliance accessories, automotive stamping parts, hardware products, optical instruments, educational instruments, household electric heaters, small appliances, and plastic-related products.

This broad manufacturing scope supports integrated project coordination. A customer developing a complete appliance or equipment assembly may require several related metal components. Working with a supplier that understands stamping, bending, deep drawing, and associated parts can simplify communication and reduce the need to coordinate multiple vendors.

6.3 OEM and ODM Support

OEM and ODM projects frequently require adaptation rather than selection from a standard catalog. The container’s dimensions, opening location, material, thickness, surface finish, and packaging can be developed according to the customer’s product design.

For an OEM project, the manufacturer produces according to customer drawings, samples, specifications, or approved technical documents. For an ODM project, the manufacturer can contribute production experience to help refine the design and prepare it for efficient manufacturing.

6.4 Rapid Prototyping and Production Conversion

Prototype development allows the customer to verify fit, access, strength, appearance, and assembly before committing to large-scale production. Prototype methods may differ from final mass-production methods, but the prototype should represent the critical characteristics of the production part as closely as practical.

After approval, the project can be converted into an efficient production process with dedicated tooling, controlled parameters, inspection criteria, and planned packaging. A clear transition from prototype to production helps avoid unexpected changes in dimensions or appearance.

6.5 Quality Control and Delivery Management

Stable quality depends on control throughout the process rather than inspection only at the end. Material verification, tool maintenance, process monitoring, in-process checks, and final inspection all contribute to reliable output.

Delivery performance is also important for customers operating assembly lines. Production planning, material preparation, tool availability, and packaging coordination help support stable delivery schedules. The specific lead time depends on part complexity, tooling requirements, quantity, material availability, and inspection expectations.

6.6 Long-Term Customer Support

Deep-drawn components are often part of a larger product that may remain in production for years. Consistent technical records, repeatable tooling, and responsive communication are therefore valuable. After-sales support may include replacement production, dimensional clarification, process improvement, packaging adjustment, and assistance with future design changes.

7. Product Advantages by Application

7.1 Food-Processing Equipment

Food-processing environments commonly require smooth surfaces, reliable cleaning, resistance to moisture, and minimal contamination risk. A deep-drawn container can reduce the number of crevices compared with a multi-panel welded box. A side cutout can provide access to a feed path, inspection area, control interface, or connected mechanism.

Material selection and surface treatment should be matched to the relevant food-contact and sanitation requirements. The manufacturer should receive clear information about cleaning agents, temperatures, exposure time, and contact conditions before finalizing the material and finish.

7.2 Medical and Laboratory Equipment

Medical and laboratory equipment may require cleanable surfaces, consistent dimensions, smooth edges, and controlled appearance. The one-sided opening can allow access to internal modules or provide clearance for tubing, wiring, and instruments.

Where the component will be cleaned or sterilized, the design should avoid unnecessary pockets and inaccessible corners. The cutout edge should be carefully finished to prevent damage to gloves, cables, or adjacent components.

7.3 Kitchen Appliance Accessories

Kitchen appliances often combine compact dimensions, visible surfaces, heat exposure, and repeated user interaction. Deep-drawn metal bodies can provide an attractive and durable structure for trays, shields, liners, supports, covers, and internal containers.

The square form makes efficient use of appliance space, while the side opening can support ventilation, control access, heating-element clearance, or installation of a related component. Stainless steel and other corrosion-resistant materials may be suitable depending on temperature and cleaning requirements.

7.4 Automotive Components

Automotive stamping parts must generally meet demanding requirements for repeatability, fit, vibration resistance, and efficient production. A deep-drawn square component may serve as a housing, bracketed enclosure, shield, support, reservoir-like body, or structural subcomponent.

Automotive applications require careful consideration of vibration, temperature changes, corrosion exposure, assembly forces, and dimensional tolerances. Additional features such as mounting holes, tabs, flanges, ribs, and fastening points can be integrated into the design where appropriate.

7.5 Optical and Educational Instruments

Optical and educational instruments may use small precision housings, protective shells, brackets, and formed containers. A deep-drawn part can provide a clean external shape and stable mounting surfaces while reducing the number of separate components.

When the product is visible to users, surface quality and edge finishing become especially important. The cutout can accommodate adjustment mechanisms, viewing paths, cables, or internal assemblies.

7.6 Industrial Equipment

Industrial systems often contain many interconnected components in limited spaces. The square container can act as a protective enclosure, guide, collection body, mounting interface, or access module. The one-sided opening provides a practical means of connecting the component to equipment without requiring a completely open structure.

Industrial customers may also benefit from customized thicknesses, reinforced edges, special coatings, and repeatable mounting dimensions. These features can be developed around the actual operating environment.

8. Recommended Design Parameters

Good product performance begins with a complete and realistic design specification. The following parameters should be addressed before tooling and production approval.

Parameter	Design Consideration	Effect on Production
Overall length, width, and height	Must match available installation space and required internal volume.	Determines blank size, draw depth, tooling dimensions, and forming sequence.
Material grade	Should balance formability, strength, corrosion resistance, appearance, and cost.	Influences drawability, lubrication, tool wear, surface finish, and inspection.
Sheet thickness	Should support structural and environmental requirements without unnecessary weight.	Affects forming force, springback, cutout strength, and final mass.
Corner radius	Should be large enough to support material flow and prevent excessive stress.	Strongly affects wrinkling, tearing, tool life, and dimensional stability.
Cutout location	Must provide access or clearance while preserving wall and corner strength.	Determines whether cutting is performed before or after forming and may require reinforcement.
Cutout shape and size	Should meet access, cable, airflow, or component-interface requirements.	Influences cutting method, burr control, edge finishing, and inspection fixtures.
Surface treatment	May include brushing, polishing, electropolishing, coating, or plating.	Determines appearance, corrosion behavior, cleaning performance, and packaging needs.
Edge condition	Edges may require deburring, folding, rolling, or a protective return.	Impacts safety, assembly, sealing, cable protection, and user interaction.
Production quantity	Annual volume and order frequency should be identified early.	Guides the choice between flexible methods and dedicated high-volume tooling.
Inspection requirements	Critical dimensions and acceptance criteria should be clearly defined.	Determines gauges, measurement equipment, sampling plans, and documentation.

9. Quality Considerations

9.1 Dimensional Accuracy

The container must meet the dimensions that control fit and function. Overall height, wall width, opening size, cutout position, corner radius, flange location, and mounting features may all be critical. A supplier should distinguish between critical dimensions and non-critical cosmetic dimensions so inspection resources can be allocated effectively.

9.2 Wall Thickness and Thinning

Deep drawing changes the distribution of material thickness. Certain areas may experience thinning, particularly around corners or transitions subjected to high tensile stress. If the component must withstand pressure, impact, repeated loading, or high temperature, the design should account for possible thickness variation.

9.3 Wrinkling and Tearing

Wrinkling occurs when compressive forces cause the sheet to buckle. Tearing occurs when tensile stress exceeds the material’s forming capability. Both problems may result from unsuitable blank size, tool geometry, blank-holder pressure, lubrication, material properties, or an overly aggressive draw sequence.

Tool trials and process adjustments are commonly used to establish a stable balance. The appropriate solution may involve changing the corner radius, modifying the draw bead, adjusting the holding force, or dividing the operation into additional stages.

9.4 Springback and Flatness

After forming, elastic recovery can cause the part to deviate slightly from the tool shape. Springback is affected by material strength, thickness, geometry, and forming direction. Calibration, restriking, tool compensation, and controlled process parameters can help achieve the required dimensions.

9.5 Cutout Accuracy

The cutout must be evaluated for size, position, shape, burrs, and distortion. If it interfaces with a cover, seal, cable gland, bracket, or moving component, even a small deviation may affect assembly. Dedicated checking fixtures can provide efficient verification during production.

9.6 Surface Appearance

Surface inspection should consider scratches, dents, die marks, discoloration, uneven brushing, polishing lines, and handling damage. Cosmetic requirements should be defined using samples, photographs, or written standards to minimize subjective disagreement.

9.7 Cleanliness and Packaging

Residual oil, metal particles, abrasive dust, and packaging fibers should be controlled according to the end use. Parts for food-processing, medical, laboratory, or visible appliance applications may require more stringent cleaning and protective packaging than internal industrial components.

10. Customization and Development Workflow

A successful custom project usually follows a structured sequence. The customer first provides drawings, models, samples, photographs, or a description of the intended function. Information about annual quantity, expected service conditions, material preference, surface finish, and assembly method is also useful.

The manufacturer then reviews the design for manufacturability. This review may result in recommendations concerning radii, wall thickness, cutout placement, flange geometry, tolerances, or the number of forming stages. Early design adjustments are generally less expensive than changes made after tooling is completed.

After technical alignment, the manufacturer prepares a quotation covering tooling, sample development, unit pricing, surface treatment, inspection, packaging, and delivery assumptions. The exact commercial structure depends on order volume and project complexity.

Tooling is developed after the design is approved. Trial parts are produced and evaluated for formability, dimensions, surface quality, cutout accuracy, and assembly fit. If necessary, the tool or process is adjusted before final approval.

Production begins after the sample and inspection criteria are accepted. Process records and approved samples help maintain consistency during repeat orders. For long-term projects, engineering changes should be documented so that the correct revision is used in production.

11. Comparison with Alternative Production Methods

11.1 Welded Sheet Metal Boxes

Welded boxes offer design flexibility and can be economical for prototypes or very low volumes. However, they require multiple cut panels, accurate positioning, welding, grinding, and sometimes sealing. Weld seams may affect appearance, internal cleanability, corrosion behavior, and dimensional stability.

Deep drawing is often more advantageous when the geometry is stable and production volume justifies tooling. It provides an integrated structure and can reduce secondary assembly operations.

11.2 Press-Braked Assemblies

Press-braked parts are produced by bending flat panels and joining them afterward. This method is flexible and useful for large components or small quantities. However, it may create overlapping corners, separate seams, and more variation between operators or production batches.

A deep-drawn container can provide better repeatability and a cleaner integrated shape when the dimensions and material are suitable for forming.

11.3 CNC Machined Blocks

Machining can produce accurate containers and complex openings, especially for prototypes or specialized components. The disadvantages may include high material waste, long cycle times, and greater cost for larger parts or higher quantities.

Deep drawing uses sheet material efficiently and can offer a lower unit cost after tooling is established. Machining may still be appropriate for very thick materials, small precision cavities, or geometries that cannot be formed.

11.4 Additive Manufacturing

Additive manufacturing is useful for rapid design iteration and highly complex low-volume parts. It may not provide the same surface finish, material efficiency, production speed, or long-term cost structure as deep drawing for a repetitive sheet metal container.

The best method depends on volume, material, tolerance, surface requirements, functional loads, and development stage. In many projects, additive or machined prototypes are followed by deep-drawn production parts.

12. Purchasing and Supplier Selection

When selecting a supplier for deep-drawn square containers, buyers should evaluate more than the quoted unit price. The supplier’s forming experience, tooling capability, inspection system, material control, surface finishing options, production capacity, and communication process all influence total project cost.

A capable supplier should be able to discuss the feasibility of the square geometry and side opening in practical terms. The supplier should also explain the likely forming sequence, critical dimensions, potential risks, and recommended inspection method.

Customers should request samples or comparable production evidence where appropriate. They should clarify whether tooling belongs to the customer, how tool maintenance is managed, and how engineering changes are controlled.

It is also important to confirm the scope of supply. The quotation should identify whether it includes raw material, forming, trimming, cutout production, deburring, surface treatment, inspection, packaging, and delivery. Clear scope definition prevents unexpected charges and delays.

For international customers, communication and export experience are additional considerations. Yuyao Hongli Optoelectronics provides manufacturing, processing, wholesale, retail, import, and export services, supporting customers in different markets with customized metal components.

13. Why Choose a Custom Deep-Drawn Solution?

A custom deep-drawn container is especially valuable when a standard product cannot meet the required dimensions or interface conditions. Standard enclosures may require additional brackets, spacers, seals, or modifications to fit a particular machine. A custom part can incorporate the necessary opening and mounting relationship from the beginning.

Customization can also improve system efficiency. A correctly positioned cutout may reduce assembly time, simplify maintenance access, eliminate a separate cover, or make better use of available space. The part can be designed around the complete assembly rather than treated as an isolated box.

Another advantage is the ability to optimize material usage. The customer can specify the thickness and reinforcement required for the actual load instead of purchasing a generic component that is unnecessarily heavy or insufficiently strong.

Surface treatment can be selected at the same time as the geometry. This helps ensure that the appearance, corrosion resistance, cleanability, and handling characteristics are appropriate for the intended environment.

14. Sustainability and Production Efficiency

Deep drawing can support efficient material use because the component is produced from a sheet blank rather than assembled from several oversized panels. Blank layout can be optimized to reduce scrap, particularly when multiple parts are nested effectively within the sheet.

Reducing welding and assembly steps may also lower energy use and labor requirements. A shorter production route can decrease handling and reduce the amount of consumable material associated with welding, grinding, and sealing.

Durability is another important aspect of sustainability. A robust, accurately formed part may remain in service longer and require fewer replacements. However, sustainability must be evaluated across the complete product life cycle, including material sourcing, surface treatments, transport, maintenance, and end-of-life recycling.

Metal components such as stainless steel, aluminum, and steel are generally compatible with established recycling streams when separated and processed appropriately. Customers should consult local recycling requirements and consider whether coatings or bonded materials affect the recovery process.

15. Frequently Asked Questions

Q1: What is a deep-drawn square container with a one-sided cutout?

It is a sheet metal container formed through a deep-drawing process, typically with a square or rectangular profile and an opening removed from one side. The opening may be used for access, clearance, ventilation, cable routing, inspection, or connection to another component.

Q2: Can the opening be customized?

Yes. The cutout’s position, width, height, shape, and edge treatment can be customized according to the application. The design should consider wall strength, corner proximity, assembly clearance, and the preferred cutting method.

Q3: Which materials can be used?

Possible materials include stainless steel, aluminum, low-carbon steel, and selected coated or plated sheet metals. The correct material depends on formability, strength, corrosion resistance, temperature, appearance, and budget.

Q4: Is the container made from one piece of metal?

The principal body can be formed from one sheet, which reduces seams and welded joints. Additional features such as brackets, covers, reinforcements, or fittings may be added separately if required by the design.

Q5: Can the product be used in food-processing or medical applications?

It may be suitable for these industries when the material, surface finish, geometry, cleanliness, and production controls meet the application requirements. The customer should provide detailed information about contact conditions, cleaning methods, temperature, and applicable standards.

Q6: What surface finishes are available?

Common options include brushed, polished, and electropolished finishes. Depending on the material and application, painting, powder coating, plating, passivation, or other treatments may also be considered.

Q7: Is a prototype available before mass production?

Prototype development can be arranged for many custom projects. Prototypes allow the customer to verify dimensions, assembly fit, access, appearance, and function before production tooling and volume manufacturing are finalized.

Q8: How should the design drawing be prepared?

The drawing should identify material, thickness, overall dimensions, corner radii, cutout size and location, tolerances, surface finish, edge requirements, mounting features, inspection points, and packaging expectations. A three-dimensional model is also helpful for complex designs.

Q9: What causes wrinkles or tears during deep drawing?

Wrinkles may result from insufficient material control or unsuitable blank-holder pressure. Tears may result from excessive tensile stress, small corner radii, unsuitable material, inadequate lubrication, an undersized blank, or an overly severe drawing operation. Tool and process adjustments are used to reduce these risks.

Q10: Can additional holes, flanges, or tabs be added?

Yes. Secondary stamping, punching, laser cutting, bending, and other operations can add mounting holes, tabs, flanges, ribs, slots, and related features. Their location should be reviewed for interference with the forming process and structural requirements.

Q11: How can the cutout edge be made safer?

The edge can be deburred, rounded, folded, hemmed, rolled, or fitted with a protective trim, depending on the application. The appropriate solution depends on material thickness, user contact, assembly method, and appearance requirements.

Q12: Why is an experienced manufacturer important?

Deep drawing involves complex material behavior, especially for square geometries and parts with large side openings. An experienced manufacturer can identify forming risks, recommend practical design changes, select an appropriate production route, and maintain consistency during repeat orders.

Q13: Does production quantity affect the manufacturing method?

Yes. Low-volume production may favor flexible cutting and forming methods, while medium- and high-volume production can justify dedicated tooling. Quantity, annual demand, part complexity, and required unit cost should all be considered together.

Q14: What industries can use this product?

Potential applications include industrial equipment, food-processing machinery, medical and laboratory equipment, kitchen appliances, automotive systems, optical instruments, educational instruments, household electrical products, and customized hardware assemblies.

Q15: What information should be included in an inquiry?

An inquiry should include drawings or samples, annual quantity, material preference, thickness, overall dimensions, cutout details, surface finish, tolerance requirements, application environment, packaging needs, and target delivery schedule. Complete information allows a more accurate feasibility assessment and quotation.

16. Conclusion

Deep-drawn square containers with one-sided cutouts combine the strength and continuity of formed sheet metal with the practical access of a customized opening. Their integrated construction can reduce seams, improve dimensional repeatability, support efficient use of space, and simplify assembly compared with conventional multi-panel fabricated boxes.

The product is suitable for a broad range of applications, including industrial equipment, food-processing systems, medical and laboratory devices, kitchen appliances, automotive assemblies, optical instruments, and specialized hardware. Material, thickness, cutout geometry, edge condition, surface treatment, and inspection requirements can be adapted to the intended operating environment.

Reliable production depends on careful engineering from the beginning. Square deep drawing requires attention to material flow, corner radii, blank-holder pressure, draw depth, lubrication, forming sequence, trimming, cutout creation, deburring, and final inspection. The best results are achieved when the manufacturer is involved early enough to review the design and identify potential production risks.

Yuyao Hongli Optoelectronics Co., Ltd. combines more than 20 years of industry experience with a 5,000-square-meter manufacturing facility, multiple stamping workshops, more than 60 employees, OEM and ODM capabilities, rapid prototyping support, and production experience across deep-drawn parts, stamped parts, bending parts, kitchen appliance accessories, and automotive stamping parts.

For customers seeking a durable, precise, and application-specific metal container, a custom deep-drawn square shape with one-sided cutout can provide a practical alternative to welded, bent, or machined assemblies. With appropriate material selection, tool design, surface treatment, and quality control, the component can support reliable performance and long-term cooperation across a wide range of industries.

References

1. ASM International, ASM Handbook: Forming and Forging.

2. American Society for Metals, Sheet Metal Forming Principles and Practice.

3. Schuler GmbH, Handbook of Pressing Technology.

4. Society of Automotive Engineers, Sheet Metal Forming and Automotive Manufacturing Practices.

5. International Organization for Standardization, Quality Management Systems — Requirements.

6. International Organization for Standardization, Geometrical Product Specifications and Dimensional Tolerancing.

7. American Society for Testing and Materials, Standard Practices for Stainless Steel, Aluminum, and Carbon Steel Sheet Products.

8. Manufacturing Engineering and Sheet Metal Technology, technical guidance on deep drawing, stamping, trimming, deburring, and surface finishing.

Product: Deep-drawn square shape with one side cut out
